Product Detailed Parameters
- Description：LINE FILTER 180A CHASSIS MOUNT
- Series：AYC
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：180 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：UR
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

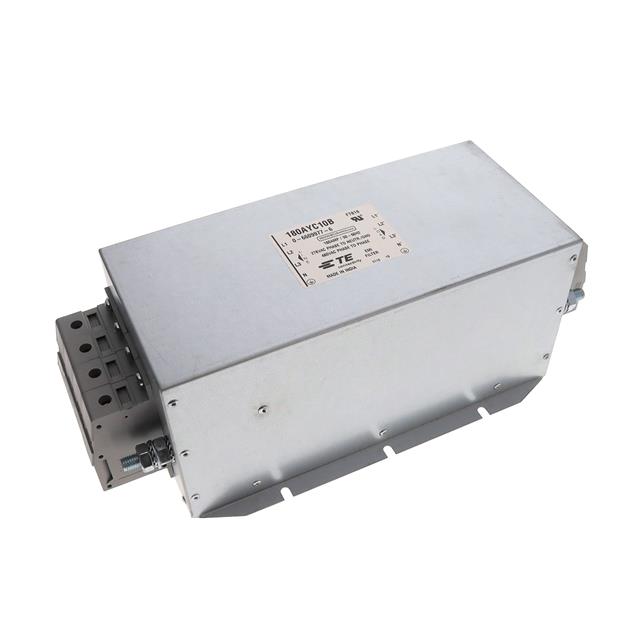

The TE Connectivity Corcom Filters model 6609977-6 is a three-phase power line filter designed for industrial applications. It supports a rated voltage of 480VAC and operates at frequencies of 50Hz or 60Hz with a current rating of 180A. The component utilizes terminal block connections for secure electrical interfacing. This EMI/RFI filter module integrates IEC inlet compatibility, making it suitable for robust power entry systems in demanding environments.
Feature Summary
- Provides electromagnetic interference and radio-frequency noise suppression for three-phase AC power lines
- Integrates power entry, filtering, and basic control functions within a single compact panel-mount component
- Features terminal block termination style for reliable high-current connections
Applications
- Industrial machinery power distribution
- Three-phase AC power line noise reduction
- Lighting system power entry modules
Procurement Notes
Verify the specific datasheet version and mechanical drawings before integration, as industrial components may undergo manufacturing location changes. Confirm that the terminal block interface matches the existing wiring harness specifications. Ensure the 180A current rating aligns with the circuit protection devices to prevent overload conditions during operation.
Selection Notes
Select this component when a three-phase solution is required for high-current applications up to 180A at 480VAC. The terminal block connection style is distinct from quick-connect or wire-lead options found in other series. Consider the panel-mount form factor and the need for integrated EMI/RFI filtering alongside power entry functionality.
Part Context
This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in power entry modules and EMI/RFI filters. The 6609977-6 specifically addresses three-phase requirements, differing from the single-phase models like the 2EB3 or 3EHQ3 found in the same manufacturer catalog. It serves as a specialized solution for heavy-duty industrial power management.
FAQ
Is this filter compatible with single-phase systems?
No, the 6609977-6 is explicitly designed for three-phase AC power lines and is not intended for single-phase applications.
What is the maximum operating frequency?
The component is rated for operation at 50Hz and 60Hz.
