6613BP44A1025001E

Overview

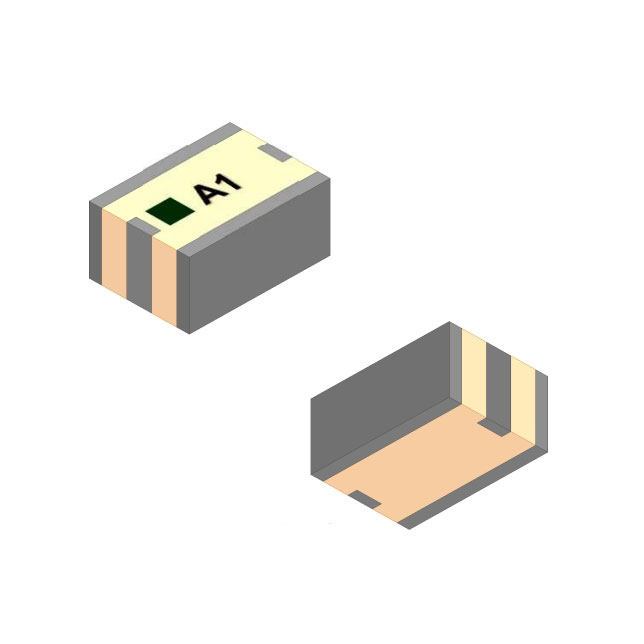

The 6613BP44A1025001E is a surface-mount bandpass filter manufactured by Johanson Technology. It operates at a center frequency of 6.6 GHz with a bandwidth of 1.025 GHz, covering a range from 6.1 GHz to 7.125 GHz. The component features an insertion loss of 2.8 dB and ripple of 2.2 dB. It is housed in a 1812 (4532 metric) package measuring 4.50mm x 3.20mm x 2.20mm. The device supports board mounting and functions within a temperature range of -40°C to +85°C.

Feature Summary

• Designed for the 6.6 GHz Extended WiFi Band applications
• Utilizes a compact 1812 surface-mount footprint for space-constrained designs
• Provides signal conditioning through bandpass filtering capabilities

Applications

• Extended WiFi Band systems
• RF signal conditioning circuits
• Wireless communication modules operating in the 6 GHz spectrum

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current part numbering guidelines, as legacy designations may differ. Confirm RoHS compliance status and REACH registration details directly from the official datasheet before integration. Ensure the selected packaging format matches production requirements, as availability varies between cut tape, reel, and Digi-Reel options depending on the distributor.

Selection Notes

Select this component when a fixed center frequency of 6.6 GHz is required for extended WiFi applications. The 1812 package size suits boards with moderate component density constraints. Consider the 2.8 dB insertion loss impact on system gain budgets. Verify that the 1.025 GHz bandwidth aligns with the necessary channel spacing and spectral mask requirements for the target wireless standard.

Part Context

This part belongs to Johanson Technology's BP series of bandpass filters. These components are engineered for RF signal conditioning in high-frequency wireless environments. The series typically utilizes ceramic technology to achieve stable performance across specified temperature ranges while maintaining small physical dimensions suitable for modern electronic assemblies.

Replacement Considerations

The legacy part number 6613BP44A1025 is documented as an alias. Verify electrical equivalence and pin compatibility if substituting with other 6.6 GHz bandpass filters from different manufacturers, ensuring package dimensions and insertion loss specifications remain within acceptable tolerances.
