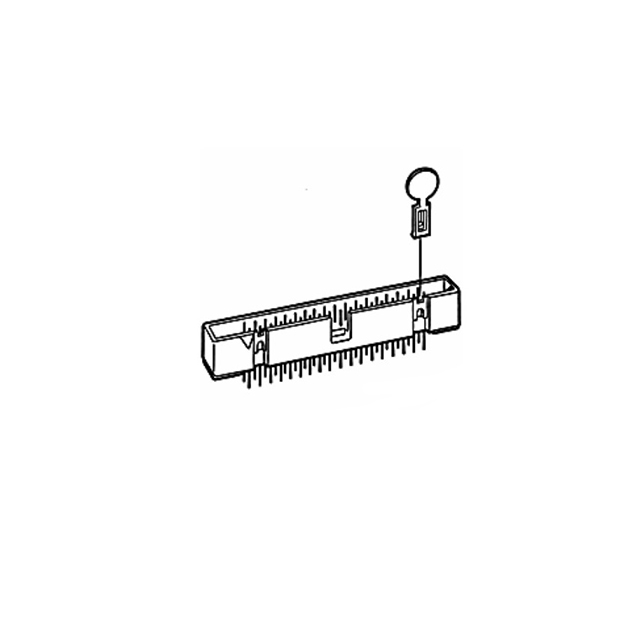

66506-002

66506-002 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 10POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 66506-002

• Description：CONN HEADER VERT 10POS 2.54MM
• Series：Quickie™
• Mfr：Amphenol ICC (FCI)
• Package：Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：10
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：0.150" (3.81mm)
• Overall Contact Length：-
• Insulation Height：0.365" (9.27mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：-
• Contact Material：Phosphor Bronze
• Insulation Material：Polyester, Glass Filled
• Features：Keying Slot
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 66506-002
