Fixed Inductors Overview

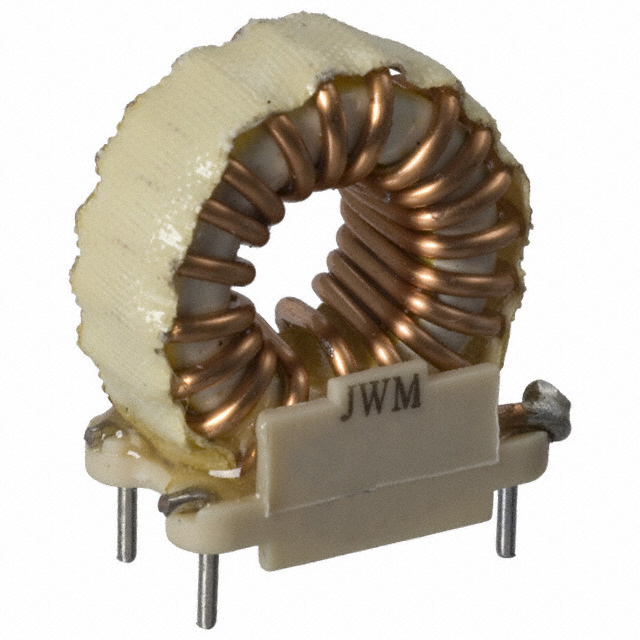

The Bourns Inc. 6702 is a leaded power inductor featuring a toroidal core and radial vertical mounting configuration with four leads. It provides an inductance of 25 µH with a tolerance of 15%. The component exhibits a maximum DC resistance of 350 mOhms and operates within a temperature range of -55°C to 105°C. Designed for through-hole PCB integration, it serves as a fixed inductor for power applications.

Fixed Inductors Feature Summary

• Utilizes a toroidal core structure for efficient magnetic containment
• Supports through-hole mounting via a four-lead radial vertical package
• Rated for operation across a wide industrial temperature spectrum

Fixed Inductors Applications

• Power supply filtering circuits
• General power electronics systems
• Industrial equipment signal conditioning

Fixed Inductors Procurement Notes

Verify the obsolete lifecycle status before procurement planning. Confirm that the 25 µH inductance and 15% tolerance align with circuit requirements. Ensure the 350 mOhm DC resistance meets design constraints. Validate the four-lead radial package dimensions against the target PCB footprint. Check for available replacement components due to end-of-life status.

Fixed Inductors Selection Notes

Select this component when a 25 µH inductance value is required for power applications. Consider the 15% tolerance if precise inductance control is not critical. Evaluate the 350 mOhm DC resistance for efficiency needs. Verify compatibility with through-hole assembly processes. Assess the -55°C to 105°C operating range against environmental conditions.

Fixed Inductors Part Context

The 6702 belongs to Bourns' line of leaded power inductors. It is categorized as a fixed inductor designed for robust performance in power handling scenarios. The product utilizes standard through-hole technology for reliable PCB attachment. Its specifications target general-purpose power management tasks.

Fixed Inductors Replacement Considerations

The part is marked as obsolete. Identify equivalent leaded power inductors with matching 25 µH inductance and similar current ratings. Verify pinout compatibility for the four-lead radial package. Consult manufacturer catalogs for direct replacements or updated series.
