68020-214HLF

Headers, Male Pins Overview

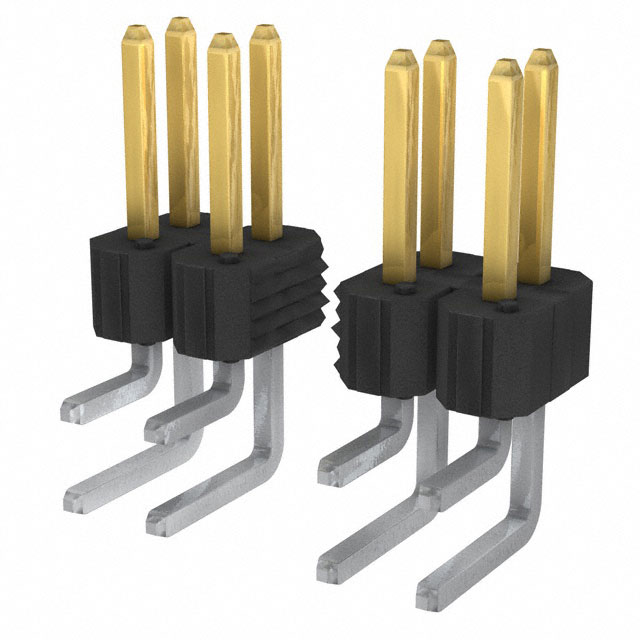

The Amphenol ICC (FCI) 68020-214HLF is an unshrouded BergStik header connector designed for board-to-board applications. It features a 2.54 mm pitch and contains 14 positions arranged in a single row. The component utilizes male pin contacts with gold plating, fabricated from phosphor bronze for durability. Termination is achieved via solder pins using a right-angle through-hole mounting style. The housing is constructed from black thermoplastic material rated UL 94 V-0 for flammability. Electrical specifications include a current rating of 3 A per contact and an insulation resistance of 5 GOhms. The operating temperature range spans from -65°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole termination facilitates compact vertical circuit board integration.
• Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
• Unshrouded design allows for flexible mating configurations with compatible sockets.

Headers, Male Pins Applications

• Board-to-board interconnections
• Industrial instrumentation systems
• Factory automation equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm plating thickness and material composition. Ensure the selected variant matches the required contact count and termination style for the target PCB layout. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, single-row header is required for space-constrained designs. Confirm that the 2.54 mm pitch aligns with the mating connector footprint. Evaluate the thermal environment to ensure operation within the specified -65°C to +125°C range. Verify that the 3 A current rating meets the electrical load requirements of the application circuit.

Headers, Male Pins Part Context

This part belongs to the BergStik series, a widely used line of rectangular connectors known for their versatility in general-purpose interconnect solutions. The series offers various configurations including shrouded and unshrouded options with different row counts and termination styles. It serves as a standard solution for connecting peripheral boards or modules in electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitute part numbers. Ensure any replacement maintains identical pitch, contact count, and mechanical dimensions to guarantee compatibility with existing PCB footprints and mating hardware.
