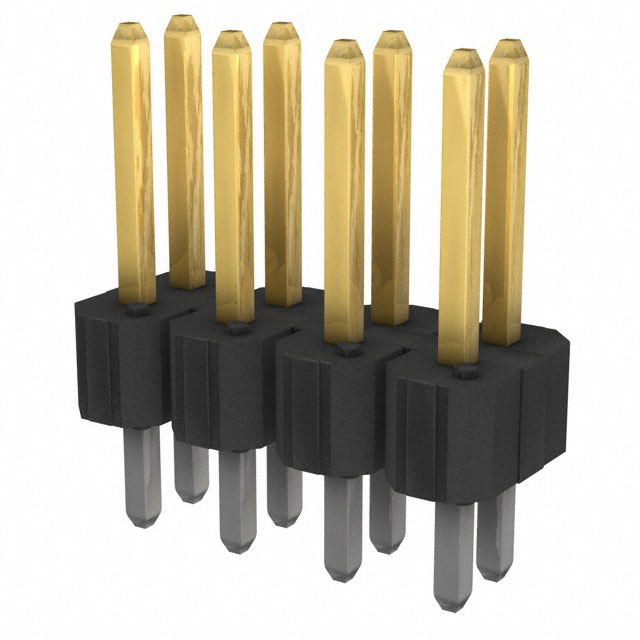

68491-108HLF

Description：CONN HEADER VERT 8POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:97416dbe3951 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

68491-108HLF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 8POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 68491-108HLF

Description：CONN HEADER VERT 8POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.255" (6.48mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.475" (12.07mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold or Gold, GXT™
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：-
Features：-
Operating Temperature：-65°C ~ 130°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for 68491-108HLF

68491-108HLF

Headers, Male Pins Overview

The 68491-108HLF is an unshrouded header manufactured by Amphenol ICC (FCI). It features a 2.54 mm pitch and contains 8 positions arranged in a single row. The connector utilizes through-hole solder pin termination with straight mounting orientation. Male pin contacts are tin-plated phosphor bronze, rated for 3 A current and 1.5 kV voltage. Operating temperature ranges from -65°C to +125°C.

Headers, Male Pins Feature Summary

Unshrouded design for compact board-to-board interconnects
Through-hole solder termination for secure PCB mounting
Tin-plated phosphor bronze contacts for reliable conductivity

Headers, Male Pins Applications

Board-to-board connections
General purpose electronic assemblies
Industrial instrumentation interfaces

Headers, Male Pins Procurement Notes

Verify the specific revision status of the component before integration. Confirm that the unshrouded configuration aligns with the mechanical constraints of the target assembly. Ensure compatibility with mating wire housing or cable assemblies specified in the official datasheet documentation.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile, single-row header with standard 2.54 mm spacing. The through-hole mounting style provides robust mechanical retention. Verify that the unshrouded contact exposure meets safety and isolation requirements for the intended enclosure design.

Headers, Male Pins Part Context

This part belongs to the BergStik II series of headers produced by Amphenol FCI. The series offers various pin counts and configurations for general-purpose connectivity. The 68491-108HLF specifically addresses needs for 8-position vertical interconnection with standard industrial electrical ratings.
