68602-452HLF

Headers, Male Pins Overview

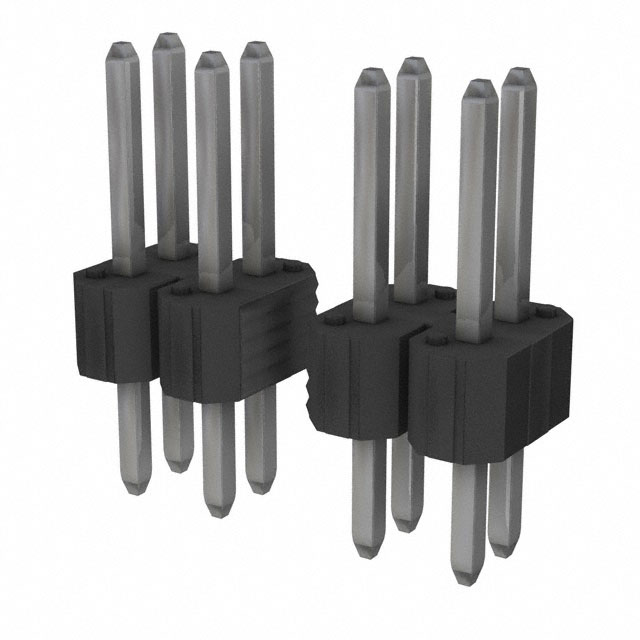

The Amphenol ICC (FCI) 68602-452HLF is a BergStik header connector featuring 52 positions arranged in a dual-row configuration. It utilizes a 2.54 mm pitch and employs vertical through-hole termination with solder pins. The contacts are gold-plated phosphor bronze, housed in black thermoplastic insulation rated UL 94 V-0. Designed for board-to-board applications, it operates within a temperature range of -65°C to +125°C and supports a current rating of 3 A per contact.

Headers, Male Pins Feature Summary

• Dual-row unshrouded design for high-density board-to-board interconnects
• Gold plating on phosphor bronze contacts ensures reliable signal transmission
• Vertical mounting orientation facilitates standard PCB assembly processes

Headers, Male Pins Applications

• Server backplane connections
• Storage system interconnects
• Communication network equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications, as variations exist within the series. Confirm RoHS compliance status directly from the manufacturer datasheet prior to integration. Ensure the selected variant matches the required row count and position quantity for the target application design.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, dual-row header is required for vertical PCB mounting. The 2.54 mm pitch is standard for general-purpose interconnects. Consider the gold plating for corrosion resistance and durability in demanding environments compared to tin-plated alternatives in the same series.

Headers, Male Pins Part Context

This part belongs to the BergStik family of headers produced by Amphenol ICC (formerly FCI). The series provides robust solutions for data communication and industrial applications. The 68602 series specifically offers various position counts and row configurations to accommodate different density requirements in electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 52-position, 2.54mm pitch, dual-row headers from Amphenol or compatible manufacturers. Verify mechanical dimensions, pinout compatibility, and thermal ratings before substitution.
