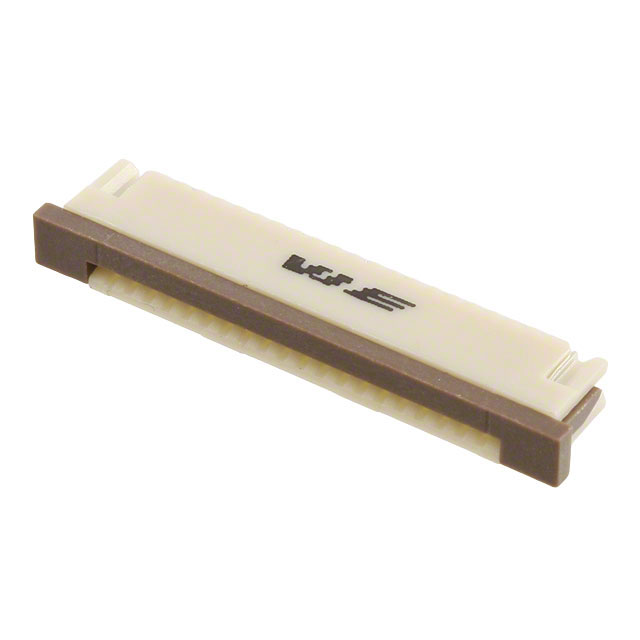

FFC, FPC (Flat Flexible) Connector Assemblies 68612014422 product image

68612014422

$1.49

Description：CONN FPC BOTTOM 20POS 1MM R/A
Series：WR-FPC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f9a232f50303 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Würth Elektronik

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

68612014422 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is CONN FPC BOTTOM 20POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 68612014422

Description：CONN FPC BOTTOM 20POS 1MM R/A
Series：WR-FPC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：20
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.29mm ~ 0.34mm
Height Above Board：0.118" (3.00mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polyphenylene Sulfide (PPS)
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：125V
Operating Temperature：-25°C ~ 85°C
Material Flammability Rating：UL94 V-0
