68705-434HLF

Headers, Male Pins Overview

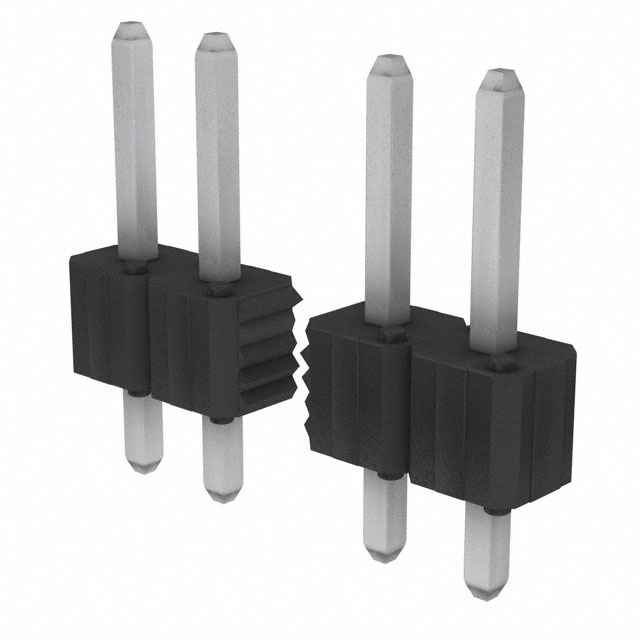

The 68705-434HLF is a Bergstik II unshrouded breakaway header manufactured by Amphenol ICC (FCI). It features a single row with 34 positions and a 0.100 inch (2.54 mm) pitch. The connector utilizes square male pin contacts with tin plating on phosphor bronze. Designed for through-hole termination, it has a vertical orientation and an overall contact length of 0.395 inches. The housing is black UL94 V-0 rated plastic, supporting a maximum current of 5A and voltage of 110V.

Headers, Male Pins Feature Summary

• Unshrouded breakaway design allows for easy separation into smaller sections during assembly
• Vertical board mount configuration facilitates direct PCB insertion
• Tin-plated phosphor bronze contacts ensure reliable electrical conductivity

Headers, Male Pins Applications

• Industrial control systems requiring modular interconnects
• General purpose electronic equipment signal routing
• Instrumentation panel connections

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Amphenol channels due to End-of-Life status. Confirm RoHS compliance details via official datasheets as historical batches may vary. Request manufacturer certification for material composition and UL recognition numbers prior to final integration approval.

Headers, Male Pins Selection Notes

Select this part for applications requiring high-density single-row headers with breakaway capabilities. Ensure PCB footprint matches the 2.54mm pitch specification. Consider mechanical retention needs as the unshrouded design lacks side walls for additional strain relief compared to shrouded variants.

Headers, Male Pins Part Context

This component belongs to the Bergstik II series, a widely used line of wire-to-board and board-to-board headers. The 68705 base number indicates a standard unshrouded header format. The suffix HLF denotes halogen-free construction, aligning with environmental standards for modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

The product is listed as End-of-Life. Verify compatible substitutes within the same 68705 family or equivalent 34-position 2.54mm pitch headers from other manufacturers that match the vertical unshrouded form factor and current ratings.
