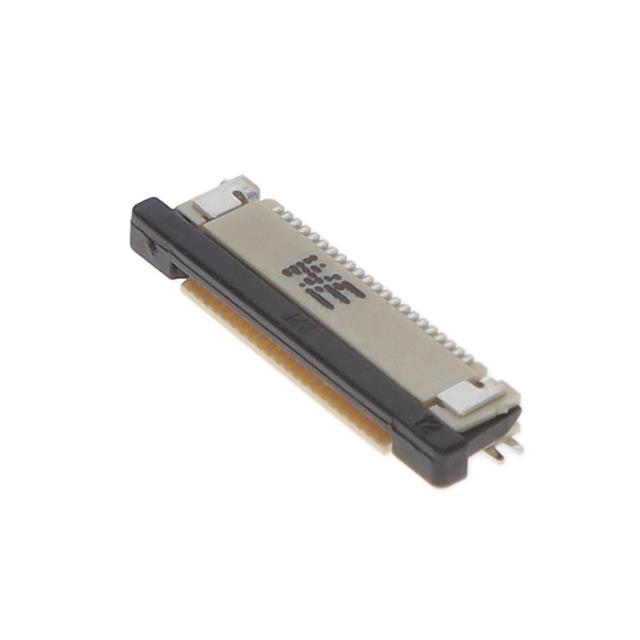

FFC, FPC (Flat Flexible) Connector Assemblies 68712214522 product image

68712214522

$1.18

Description：CONN FFC BOTTOM 22POS 0.5MM R/A
Series：WR-FPC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7ad78bf2c41a Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Würth Elektronik

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

68712214522 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is CONN FFC BOTTOM 22POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 68712214522

Description：CONN FFC BOTTOM 22POS 0.5MM R/A
Series：WR-FPC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：22
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.29mm ~ 0.34mm
Height Above Board：0.083" (2.10mm)
Locking Feature：Slide Lock
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Polyamide (PA9T), Nylon 9T
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-25°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 68712214522

68712214522
