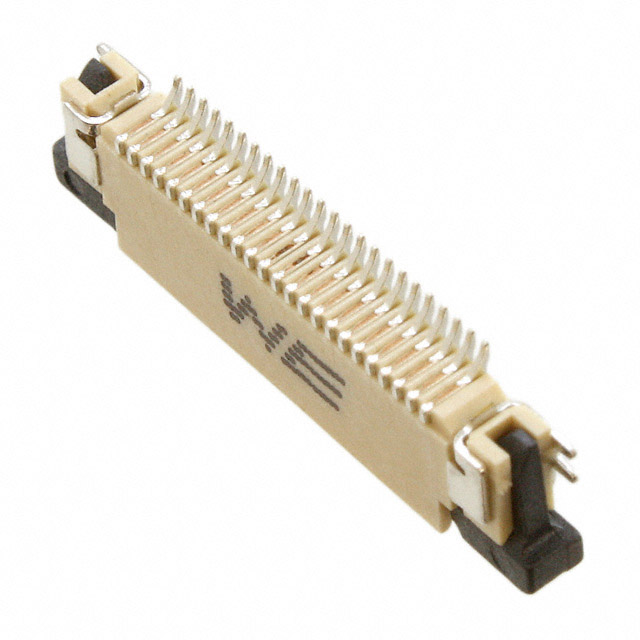

FFC, FPC (Flat Flexible) Connector Assemblies 68712414022 product image

68712414022

$1.31

Description：CONN FPC TOP 24POS 0.5MM R/A
Series：WR-FPC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:49c7c203b812 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Würth Elektronik

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

68712414022 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is CONN FPC TOP 24POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 68712414022

Description：CONN FPC TOP 24POS 0.5MM R/A
Series：WR-FPC
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：24
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.079" (2.00mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Liquid Crystal Polymer (LCP)
Features：Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-25°C ~ 85°C
Material Flammability Rating：UL94 V-0
