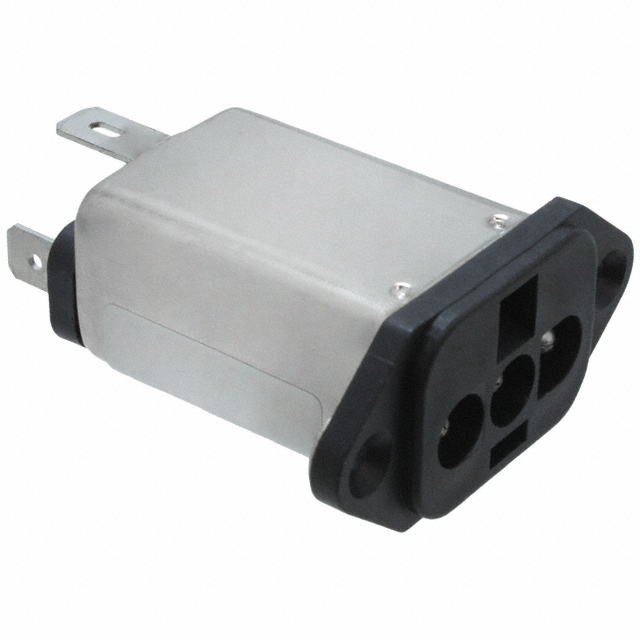

6DAF1

Description：LINE FILTER 125VDC 6A PANEL MNT
Series：DA, Corcom
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:90599f858805 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125VDC 6A PANEL MNT
Series：DA, Corcom
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：125V
Voltage - Rated AC：-
Current：6:00 AM
Frequency - Operating：-
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 55°C
Mounting Type：Panel Mount
Termination Style：Quick Connect
Inductance：465µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

6DAF1

Overview

The TE Connectivity Corcom 6DAF1 is a single-phase EMI/RFI line filter rated for 6 A and 125 VDC. It features a compact dual-stage design with high common-mode performance. The unit utilizes a 3-pin connector inlet and .250" Faston output terminals. Operating temperature ranges from -10 to 40°C.

Feature Summary

Compact dual-stage filter series
High common mode performance
Quick connect termination style

Applications

DC power line filtering
EMI suppression in low voltage systems
RFI reduction in industrial control equipment

Procurement Notes

Verify the specific datasheet version for the 6DAF1 to confirm terminal orientation and mounting dimensions. Ensure the application voltage does not exceed 125 VDC. Confirm that the .250" Faston output matches the downstream circuit board or wire harness specifications before procurement.

Selection Notes

Select this component when a compact, single-stage solution is required for DC applications up to 6 A. The 3-pin connector inlet simplifies integration into chassis-mounted power entry modules. Consider the -10 to 40°C operating range against environmental conditions.

Part Context

This part belongs to the TE Connectivity Corcom EMI/RFI filter family, which offers various single and three-phase designs. The 6DAF1 specifically addresses low-current DC filtering needs within this broader portfolio of power line filters.

Replacement Considerations

Consult official TE Connectivity documentation for direct cross-references. Verify pinout compatibility and current ratings if substituting with other Corcom models.
