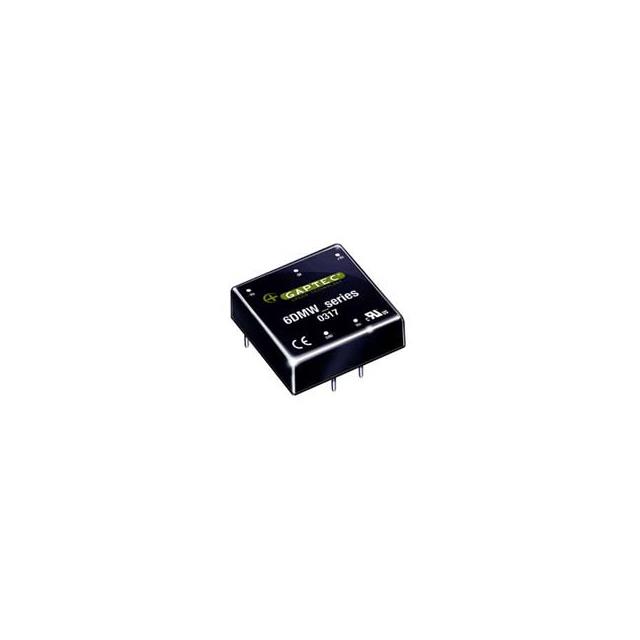

6DMW_1212D1.5

6DMW_1212D1.5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 6DMW_1212D1.5

• Description：DC-DC INDUSTRIAL
• Series：6DMW_1.5 (6W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA, 250mA
• Power (Watts)：6 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 6DMW_1212D1.5
