6EHQ1

Overview

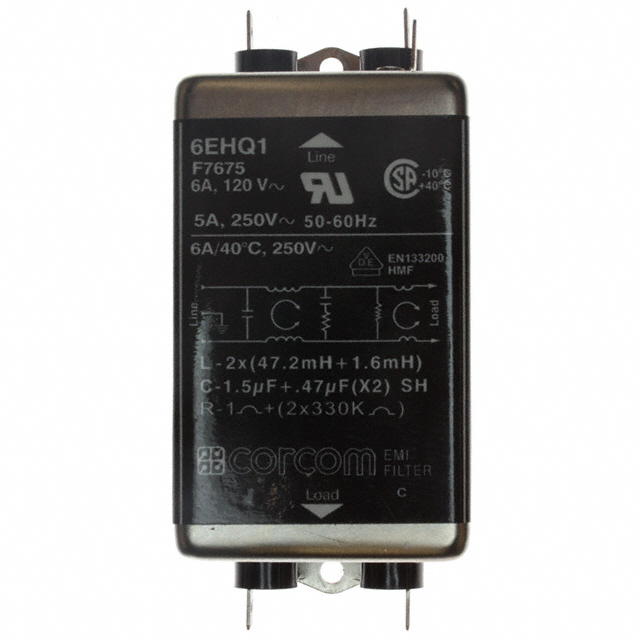

The 6EHQ1 is a single-phase EMI/RFI line filter manufactured by TE Connectivity Corcom Filters. It operates at 50/60Hz with a rated voltage of 250VAC and a current rating of 6A. The component features panel mount installation with straight 1/4 inch quick connect terminals. It provides insertion loss of 24 dB at 0.01 MHz and 42 dB at 0.15 MHz, with a maximum leakage current of 0.002 mA.

Feature Summary

• Reduces electrical noise and interference on AC power lines
• Designed for medical and general applications
• Certified by UL, CSA, and VDE

Applications

• Medical equipment
• General electronic devices requiring EMI suppression

Procurement Notes

Verify the specific manufacturer source, as multiple entities including MACOM and All Sensors list this part number. Confirm terminal style and certification requirements match the application needs before ordering.

Selection Notes

Select this filter for single-phase AC power lines requiring 6A capacity. Ensure panel thickness accommodates the mounting style and that quick connect terminals suit the wiring configuration.

Part Context

Part of the TE Connectivity Corcom Filters lineup, designed for commercial and industrial use. Complies with RoHS3 and REACH regulations. Classified under ECCN EAR99.

Replacement Considerations

FN2080B-3-06 by TE Connectivity Schaffner is listed as a similar replacement option.
