6EP1

Overview

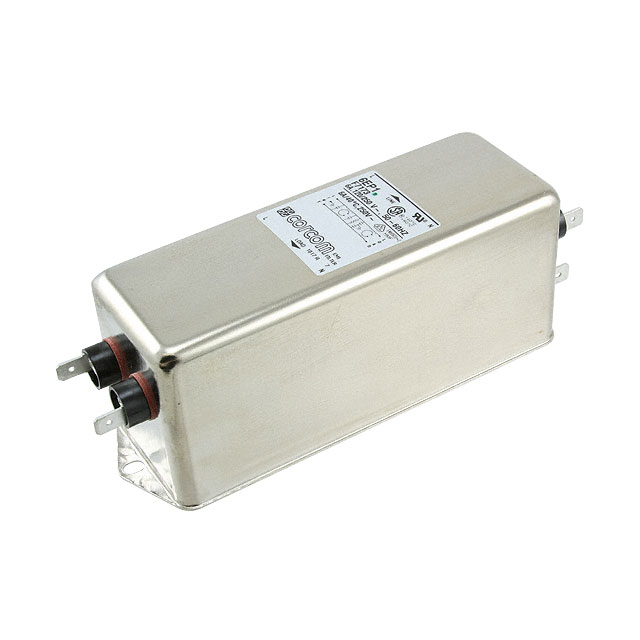

The TE Connectivity Corcom Filters 6EP1 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current rating of 6A at 50/60Hz. The component features a two-stage configuration utilizing quick connect termination styles to facilitate integration into power supply circuits.

Feature Summary

• Dual-stage RFI filtering architecture providing high insertion loss for effective noise suppression
• Optimized design compatibility with switching mode power supplies
• Chassis mount installation type with quick connect termination

Applications

• Switching mode power supplies
• General electronic equipment requiring EMI/RFI mitigation
• Power line filtering applications

Procurement Notes

Verify the specific manufacturer part number, such as 6609037-5, associated with the 6EP1 designation during sourcing. Confirm that the required two-stage performance and quick connect termination align with the system design specifications before procurement.

Selection Notes

Select this component when a single-phase filter rated for 6A at 250VAC is required. The two-stage topology is suitable for applications demanding higher attenuation levels compared to single-stage alternatives. Ensure chassis mounting space and quick connect wiring methods are accommodated in the enclosure design.

Part Context

This component belongs to the TE Connectivity Corcom Filters series of power line filter modules. It serves as an electromagnetic interference suppression solution for AC power inputs, distinguishing itself through its dual-stage construction which enhances noise reduction capabilities over standard single-stage designs.

Replacement Considerations

Consult official substitution charts for verified equivalents. Generic cross-references may not replicate the specific two-stage insertion loss characteristics or physical mounting requirements of the original component.
