6EP3

Overview

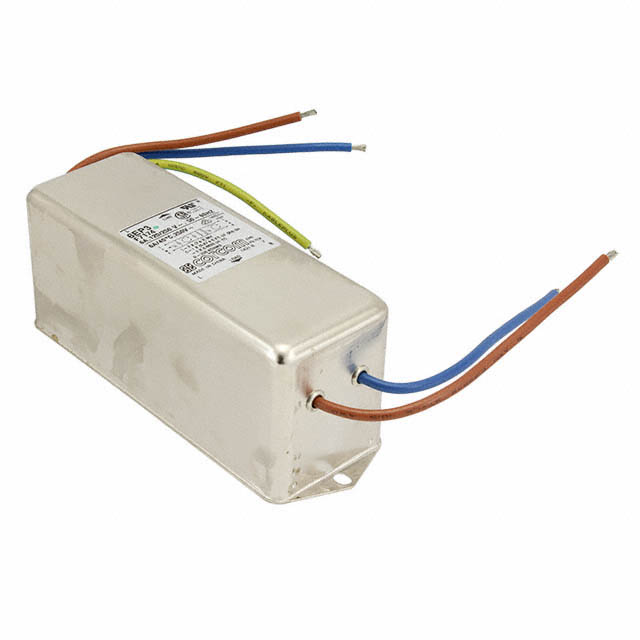

The TE Connectivity Corcom Filters 6EP3 is a single-phase EMC/EMI power line filter module designed for commercial applications. It features a rated current of 6A and operates at 250VAC with 50/60Hz frequency support. The unit utilizes wire lead termination for circuit integration and includes two-stage filtering to suppress conducted noise. This component serves as a power entry solution combining EMI suppression with electrical connectivity.

Feature Summary

• Provides two-stage electromagnetic interference (EMI) and radio frequency interference (RFI) filtering
• Integrates power entry receptacle functionality with noise suppression capabilities
• Utilizes wire lead termination for direct circuit board or harness connection

Applications

• Commercial electronic equipment requiring EMI mitigation
• Industrial automation control systems
• Medical device power supplies
• Telecommunications infrastructure

Procurement Notes

Verify the specific datasheet version corresponding to the 6EP3 part number, as TE Connectivity product portfolios undergo periodic revisions. Confirm that the wire lead configuration matches the target assembly requirements. Ensure compliance with relevant regional safety standards such as UL, CSA, or VDE applicable to the final equipment design before procurement.

Selection Notes

Select this component when a compact, single-phase filtered power inlet is required for commercial-grade electronics. The 6A rating suits moderate power consumption loads. Verify panel thickness constraints if mounting variations exist. Compare against the broader Corcom EJHS or EC series if different termination styles or voltage ratings are needed for the specific system architecture.

Part Context

This module belongs to the TE Connectivity Corcom Filters family, which specializes in electromagnetic compatibility solutions. The 6EP3 represents a single-phase variant within their commercial filter lineup, distinct from three-phase industrial units like the AYO series. It addresses conducted noise issues in sensitive electronic environments while maintaining standard power entry interface functions.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific two-stage filtering characteristics or wire lead specifications of the 6EP3 module.
