6EQ3

Overview

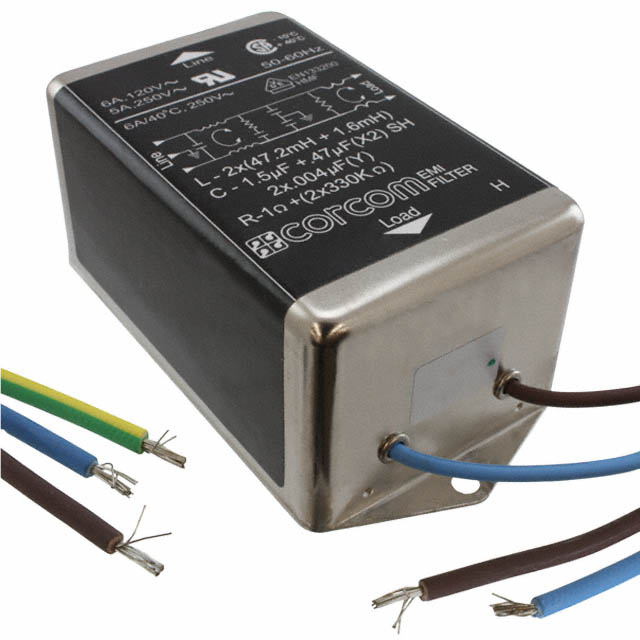

The TE Connectivity Corcom Filters 6EQ3 is a single-phase EMC/EMI line filter designed for commercial applications. It operates at 50Hz or 60Hz with a rated current of 6A and a voltage rating of 250VAC. The component features a two-stage filtering configuration to suppress electromagnetic interference. Electrical connections are established via wire leads, facilitating integration into various power supply systems.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Single-phase power line protection
• Wire lead termination style

Applications

• Commercial electronic equipment
• Power supply input stages
• General industrial machinery

Procurement Notes

Verify the specific datasheet version for the 6EQ3 part number to confirm exact physical dimensions and terminal specifications. Ensure compatibility with the target system's voltage and current requirements before procurement. Confirm regulatory certifications such as UL or VDE are required for the intended market.

Selection Notes

Select this component when a two-stage attenuation profile is necessary for noise reduction in single-phase AC circuits. The 6A rating suits moderate power loads. Verify that wire lead termination aligns with the assembly process compared to quick-connect alternatives.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 6EQ3 variant specifically addresses EMI/RFI suppression needs within the broader portfolio of AC power entry modules and filters.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
