6ESK1

Overview

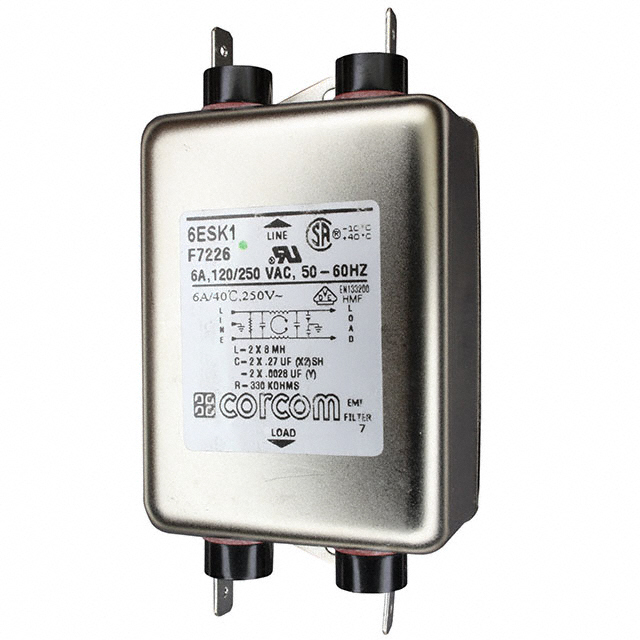

The TE Connectivity Corcom Filters 6ESK1 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 6 A at 250 VAC and operates at 50/60 Hz frequencies. The component features a single-stage configuration with quick connect termination style, intended for switch-mode power supply emission control applications.

Feature Summary

• Designed for high-performance RFI line filtering in switch-mode power supply emission control
• Single-phase configuration with single-stage filtering architecture
• Chassis mount installation with quick connect termination style

Applications

• Switch-mode power supply emission control
• General EMI/RFI suppression in electronic equipment

Procurement Notes

Verify the specific datasheet version and RoHS compliance status (ROHS3) prior to procurement. Confirm that the quick connect terminal type matches the system wiring requirements. Ensure chassis mounting dimensions align with the enclosure design specifications.

Selection Notes

Select this component for applications requiring single-phase EMI suppression at 6 A. Verify compatibility with 250 VAC systems and 50/60 Hz operation. Ensure the chassis mount form factor fits the available space and that quick connect terminals are suitable for the circuit board layout.

Part Context

This part belongs to the K Series from TE Connectivity Corcom Filters, which specializes in high-performance RFI line filters. The series is engineered specifically for managing emissions in switch-mode power supplies, providing reliable noise reduction in compact chassis-mounted configurations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
