6ESK7

Overview

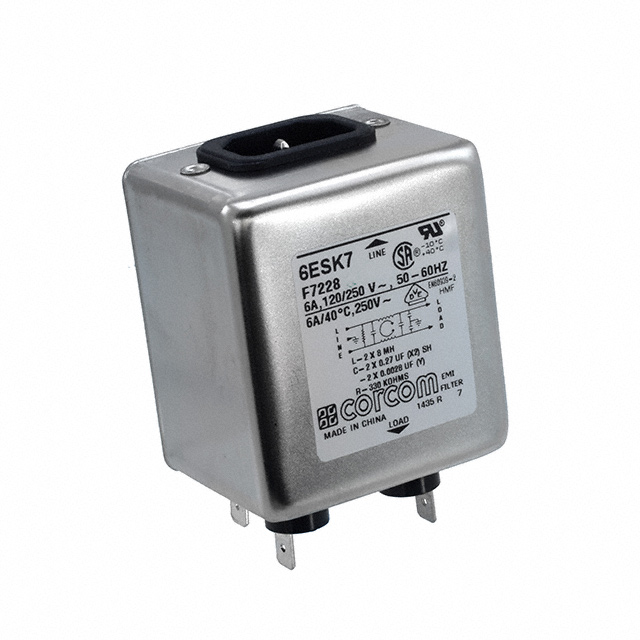

The TE Connectivity Corcom Filters 6ESK7 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a 6 A current rating and operates at 250VAC within the 50/60Hz frequency range. The unit utilizes a single-stage configuration with IEC 320-C14 input and quick-connect terminals. Certified by CSA, UR, and VDE, it supports an operating temperature of -10°C to 40°C.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for AC power lines
• Integrates IEC 320-C14 inlet connector for standardized mating
• Supports rapid circuit termination via quick-connect tabs

Applications

• Chassis-mounted electronic equipment requiring EMI filtering
• Industrial control systems utilizing standard IEC inlets
• General-purpose AC power line noise reduction

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm specific ordering suffixes match required certifications and terminal configurations. Review official datasheets for mechanical dimensions and electrical ratings prior to integration. Ensure compliance with relevant safety standards applicable to the final assembly environment.

Selection Notes

Select this model for applications requiring a 6A single-phase filter with integrated IEC inlet. Verify that the chassis mounting style and quick-connect termination align with the system design. Consider the single-stage attenuation level against specific EMI requirements. Confirm voltage and frequency ratings match the operational power supply parameters.

Part Context

This component belongs to the Corcom SK series of single-phase filters. It represents a standard solution for basic EMI suppression in commercial and industrial electronics. The series offers various current ratings and stage configurations to suit different power line filtering needs.

Replacement Considerations

Consult official substitution charts for verified alternatives. Cross-reference specifications such as current rating, voltage, and physical dimensions when evaluating potential replacements.
