6ESK7M

Overview

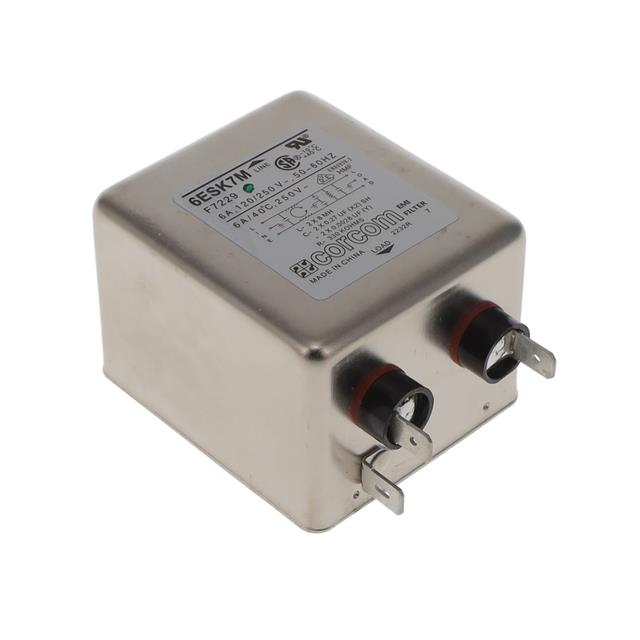

The TE Connectivity Corcom Filters 6ESK7M is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 6 A and operates at AC voltages up to 250V at 50/60Hz. The unit features a single-stage configuration with IEC 320-C14 input connectors and quick-connect terminals for circuit attachment. Certified by CSA, UR, and VDE, it functions within an operating temperature range of -10°C to 40°C.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for AC power lines
• Features IEC 320-C14 inlet connector interface
• Supports chassis bulkhead mounting installation
• Includes quick-connect terminal style for wiring

Applications

• Industrial control panels requiring EMI filtering
• Medical equipment power entry modules
• General purpose electronic enclosures
• Test and measurement instrumentation

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact terminal pitch and certification requirements. Confirm RoHS compliance status as historical data indicates potential non-compliance for certain variants. Ensure panel cutout dimensions match the chassis mounting specifications before procurement.

Selection Notes

Select this component when a single-stage filter is sufficient for the application's noise reduction needs. Verify that the 6A current rating meets the system load requirements. Ensure the chassis mounting style aligns with the enclosure design constraints compared to PCB or DIN rail alternatives.

Part Context

This part belongs to the TE Connectivity Corcom SK Series of power line filters. The series offers various configurations for different current ratings and mounting styles. The 6ESK7M specifically addresses applications requiring robust chassis-mounted filtration with standard IEC inlet compatibility.

Replacement Considerations

The 6VSK7M is a documented substitute part number for this component. Verify electrical parameters and physical dimensions before substitution.
