6ET1

Overview

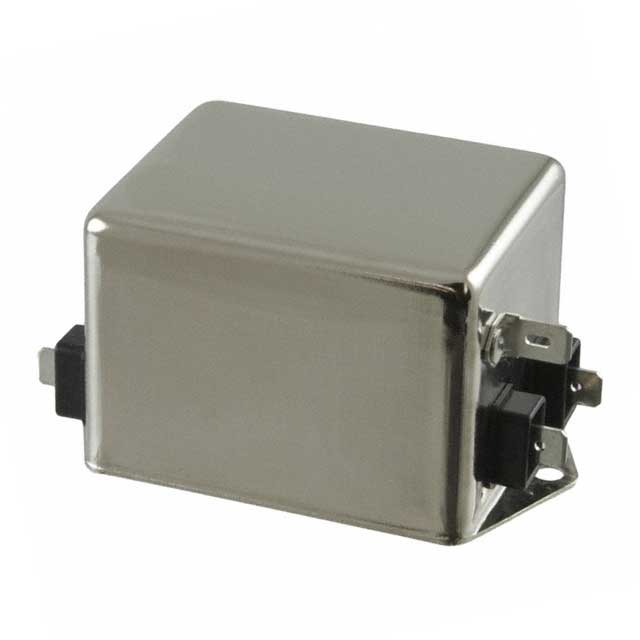

The TE Connectivity Corcom Filters 6ET1 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated AC voltage of 250V and a current capacity of 6A at 50/60Hz frequencies. The component features a single-stage configuration with an inductance of 18.5mH. Termination is achieved via quick-connect terminals, suitable for rapid assembly. Certified by CSA, UR, and VDE, it operates within a temperature range of -10°C to 40°C.

Feature Summary

• Provides superior common-mode and differential-mode noise suppression for switching power supplies
• Features a compact chassis mount design with flange installation for secure integration
• Utilizes quick-connect terminals for efficient circuit board or wire harness attachment

Applications

• Switching power supply input stages
• Industrial control equipment
• Medical electronic devices

Procurement Notes

Verify the specific datasheet version and certification marks (CSA, UR, VDE) required for your target market before ordering. Confirm that the 18.5mH inductance value meets your EMI suppression requirements. Ensure the chassis mounting dimensions align with your enclosure design constraints.

Selection Notes

Select this model when a single-phase, 6A rated filter is needed for chassis mounting applications. It is appropriate for environments requiring robust RFI attenuation in switching power supplies. Consider the operating temperature range and termination style compatibility during system design.

Part Context

This component belongs to the Corcom T series of power line filters. The series is engineered for general-purpose EMI/RFI suppression in commercial and industrial electronics. It represents a standard solution for meeting regulatory emission standards in low-voltage AC circuits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
