Product Detailed Parameters
- Description：LINE FILTER 250VAC 6A CHASS MNT
- Series：FC
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：UR
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

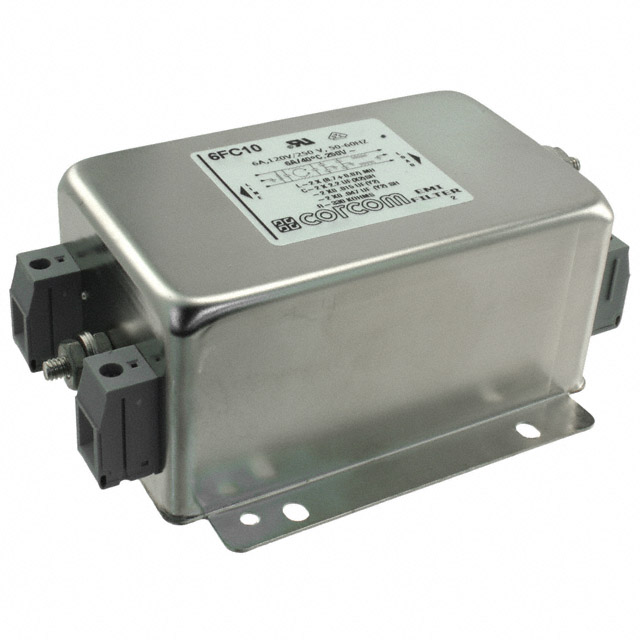

The TE Connectivity Corcom Filters 6FC10 is a single-phase power line filter designed for commercial applications. It features a flange mount installation style and utilizes terminal block connections for secure wiring. The component operates at a voltage rating of 250V AC and supports frequencies of 50Hz and 60Hz. With a current rating of 6A, it provides EMI/RFI filtering capabilities suitable for general-purpose electronic equipment requiring noise suppression in standard AC power lines.
Feature Summary
- Single-phase EMI/RFI filtering for commercial use
- Flange mount installation for chassis integration
- Terminal block connection style for reliable termination
Applications
- Commercial electronic equipment
- General-purpose AC power line noise suppression
- Chassis-mounted industrial control systems
Procurement Notes
Verify the specific datasheet version to confirm compliance with current RoHS directives and REACH regulations. Ensure that the terminal block interface matches the intended wiring harness specifications. Confirm that the flange mounting dimensions align with the target chassis cutout requirements before finalizing procurement orders.
Selection Notes
Select this model when a single-phase solution with a 6A rating is required for 250V AC circuits. The flange mount design offers robust mechanical stability compared to panel-mount alternatives. Terminal block connections facilitate easier assembly and maintenance compared to solder-based interfaces in high-vibration environments.
Part Context
This component belongs to the Corcom Filters series by TE Connectivity, specializing in electromagnetic interference suppression. The 6FC10 variant specifically addresses commercial-grade needs, distinguishing itself from medical or heavy industrial models through its specific current and voltage ratings. It represents a standard solution for basic power line conditioning.
Replacement Considerations
Cross-reference with other Corcom FC series variants if different current ratings are needed. Verify compatibility with existing mounting hardware due to potential dimensional variations across different manufacturer generations.
