6FCD10

Overview

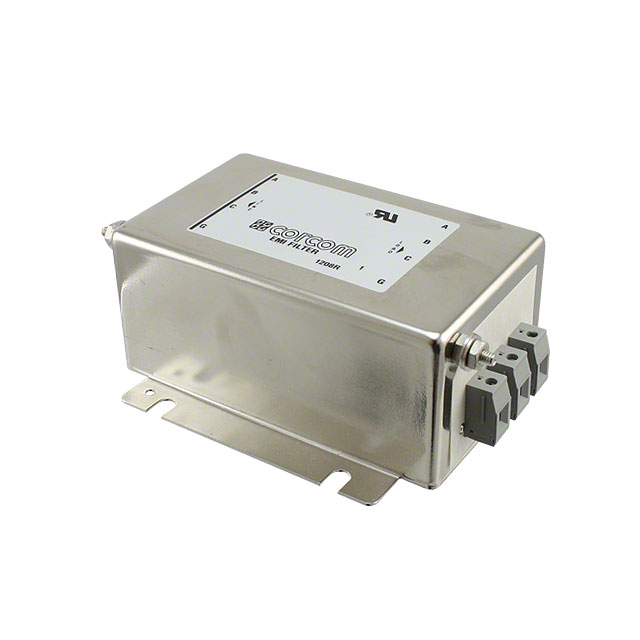

The TE Connectivity Corcom Filters 6FCD10 is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It operates at 50/60Hz with a current rating of 6A and utilizes a two-stage filtering configuration. The component features terminal block termination for secure electrical connections and is housed in a chassis-mount style enclosure. This filter provides effective noise suppression for sensitive electronic equipment connected to three-phase power systems.

Feature Summary

• Provides two-stage EMI/RFI noise suppression for three-phase Delta power lines
• Features terminal block termination for reliable circuit integration
• Designed for chassis mounting to facilitate industrial panel installation

Applications

• Industrial machinery requiring clean three-phase power
• Sensitive electronic equipment protection against electromagnetic interference
• Three-phase motor drive systems

Procurement Notes

Verify the specific voltage rating and certification requirements against your system design before procurement. Confirm that the terminal block type matches your wiring infrastructure. Check for any recent product change notices or end-of-life announcements from the manufacturer to ensure long-term availability and supply chain stability for your production needs.

Selection Notes

Select this model when a two-stage filtering solution is required for three-phase Delta configurations. Ensure the 6A current rating meets the load requirements of the protected equipment. Consider the chassis mount form factor and terminal block termination style during the mechanical design phase to ensure proper fit and electrical connectivity within the enclosure.

Part Context

This component belongs to the Corcom Filters series by TE Connectivity, specializing in electromagnetic compatibility solutions. The 6FCD10 specifically addresses noise issues in three-phase Delta systems, distinguishing it from single-phase or Wye-configured filters within the broader product portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official selector guide for direct replacements or cross-reference compatible models based on identical electrical specifications and mounting requirements.
