6GK57926MN000AA6

Overview

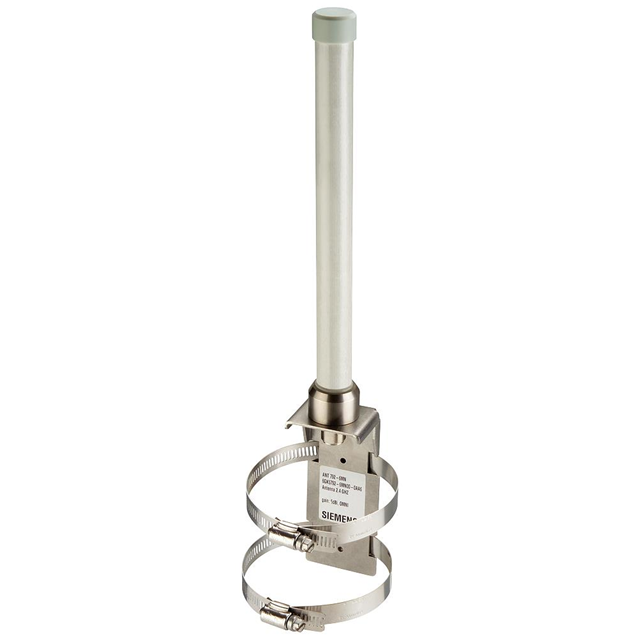

The Siemens 6GK57926MN000AA6 is an IWLAN antenna designed for industrial wireless LAN applications. It features a straight whip design with an N-type female connector and bracket mount. The unit operates at a frequency of 2.4 GHz, providing a gain of 6 dBi. Key electrical parameters include a 50 Ohm impedance and a VSWR of 1.8. The device supports Wi-Fi compliance and national approvals. It is rated IP67 and functions within a temperature range of -40°C to +70°C.

Feature Summary

• Omnidirectional radiation characteristic for consistent signal coverage
• Robust IP67 enclosure rating for harsh industrial environments
• Integrated N-female connector for direct RCoax compatibility

Applications

• Industrial Wireless LAN (IWLAN) network infrastructure
• SCALANCE Industrial Ethernet system integration
• Automated manufacturing facility connectivity

Procurement Notes

Verify the specific ordering suffix matches the required antenna model variant. Confirm that the N-female connector type aligns with existing cabling infrastructure. Ensure environmental ratings meet site-specific operational requirements. Cross-reference the part number against official Siemens catalogs to avoid substitution errors.

Selection Notes

Select this component when omnidirectional coverage is required for 2.4 GHz industrial wireless networks. The IP67 rating makes it suitable for outdoor or washdown areas. Verify compatibility with SCALANCE access points using RCoax cables. Consider the operating temperature range for extreme environment deployments.

Part Context

This antenna belongs to the SIMATIC NET product family, specifically supporting SCALANCE industrial communication solutions. It serves as a peripheral accessory for wireless data transmission in automation systems. The part is distinct from other IWLAN antennas by its specific 6 dBi gain and physical mounting configuration.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Siemens catalogs for compatible alternatives within the same product line.
