6GK57928DN000AA6

Overview

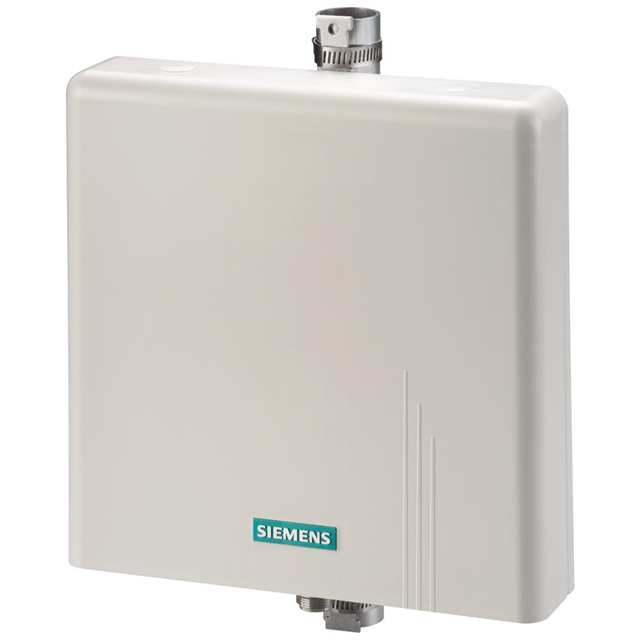

The Siemens 6GK57928DN000AA6 is an IWLAN antenna model ANT 792-8DN designed for industrial wireless local area network applications. It operates within the 2.4 GHz to 2.7 GHz frequency range, providing a gain of 14 dBi with a 50 Ohm impedance. The component features an N-Female connector and supports up to 75 W power handling. Its physical dimensions are 7.9 inches by 7.9 inches by 1.7 inches. The unit is rated IP23 for outdoor use and functions reliably in temperatures ranging from -40°C to +70°C.

Feature Summary

• Strong directional efficiency optimized for focused signal transmission
• Robust outdoor-rated construction suitable for harsh industrial environments
• Wi-Fi compatible operation within designated industrial bands

Applications

• Industrial Wireless Local Area Network (IWLAN) infrastructure
• Outdoor industrial automation communication systems
• SIMATIC NET networking solutions requiring high-gain antennas

Procurement Notes

Verify the specific part number against official Siemens documentation to ensure compatibility with existing SCALANCE hardware. Confirm that the N-Female connector interface matches the connected radio or access point. Check regional regulatory compliance for 2.4 GHz Wi-Fi usage before deployment. Ensure environmental ratings meet site-specific requirements.

Selection Notes

Select this antenna when high directional gain is required for long-range industrial wireless links. Consider the IP23 rating for exposed outdoor installations where weather resistance is critical. Verify that the operating temperature range aligns with the intended deployment environment. Ensure the 50 Ohm impedance matches the system design specifications.

Part Context

This component belongs to the Siemens SIMATIC NET product family, specifically under the SCALANCE brand line for industrial networking. It serves as a peripheral accessory for IWLAN systems, enhancing connectivity for automated manufacturing and process control networks. The part is distinct from standard consumer Wi-Fi antennas due to its ruggedized design and industrial certification.

Replacement Considerations

Consult official Siemens catalogs for direct substitutes within the ANT 792 series. Verify mechanical mounting dimensions and connector types when considering alternative models. Ensure any replacement maintains the required 14 dBi gain and IP23 rating for equivalent performance.
