Product Detailed Parameters
- Description：IWLAN ANTENNA ANT793-8DJ,18DPI,I
- Series：-
- Mfr：Siemens
- Package：Box
- RF Family/Standard：WiFi
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：5.512GHz
- Frequency Range：5.15GHz ~ 5.875GHz
- Antenna Type：Module
- Number of Bands：1
- VSWR：1.7
- Return Loss：-
- Gain：18dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：7.480" (190.00mm)
- Applications：Wi-Fi, WLAN
- Power - Max：-
Download product information
Overview

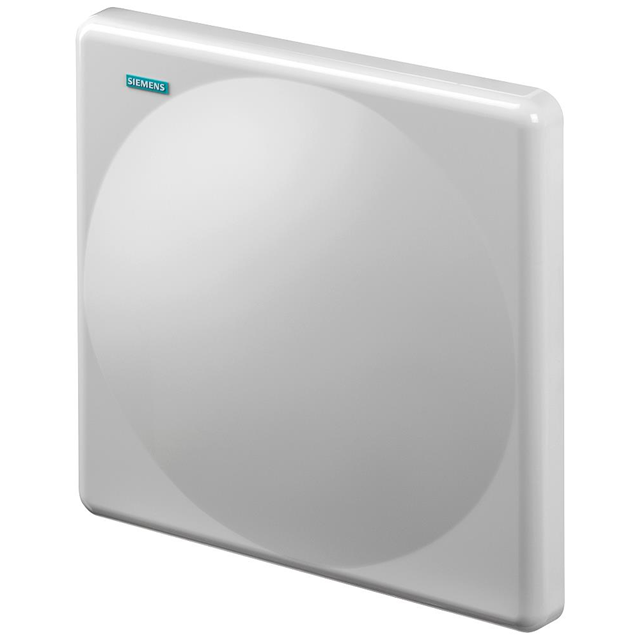

The Siemens 6GK57938DJ000AA0 is an industrial wireless directional antenna designed for IWLAN applications. It operates within the 5 GHz frequency band, specifically covering 5.15 GHz to 5.875 GHz. The component provides a peak gain of 18 dBi with linear vertical polarization. It features an N-female connector and supports wall or pole-mount installation. The unit weighs approximately 700 g and offers IP65 protection against dust and water ingress.
Feature Summary
- Directional design optimized for industrial wireless local area network (IWLAN) connectivity
- High gain performance delivering 18 dBi signal strength in the 5 GHz spectrum
- Robust outdoor construction with IP65 rating for environmental resistance
- Versatile mounting options supporting both wall and pole installation methods
Applications
- Industrial wireless LAN infrastructure deployment
- Outdoor point-to-point communication links
- Railway and transportation sector networking
- Harsh environment industrial automation systems
Procurement Notes
Verify that the specific order matches the exact part number 6GK57938DJ000AA0 to ensure correct 18 dBi gain specifications. Confirm compatibility with existing N-female connectors on associated access points. Check regional regulatory approvals for the 5.15-5.875 GHz band before procurement. Ensure mounting hardware supports the 700 g weight for safe installation.
Selection Notes
Select this model when high-directional gain is required for extended range in industrial settings. The 18 dBi output suits scenarios needing focused beam coverage rather than omnidirectional distribution. Consider the IP65 rating for exposed outdoor locations. Verify that the 5 GHz operational bandwidth aligns with local spectrum regulations and existing network equipment capabilities.
Part Context
This antenna belongs to Siemens' ANT793 series of industrial wireless components. It complements other models like the 6GK57938DL000AA0 and 6GK57938DP000AA0, which offer different gain levels and frequency characteristics. The series is engineered for reliability in demanding industrial environments requiring stable wireless data transmission.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Siemens channels for compatible alternatives or updated series replacements.
