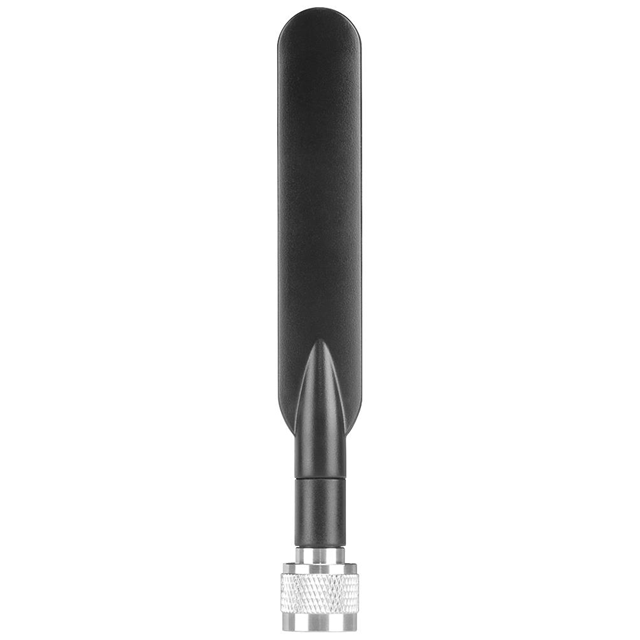

6GK57954MC000AA3

$49.97

Description：IWLAN ANTENNA ANT795-4MC
Series：-
Mfr：Siemens
Package：Box

SKU:a516c379c710 Category: RF Antennas Brand: Siemens

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IWLAN ANTENNA ANT795-4MC
Series：-
Mfr：Siemens
Package：Box
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.44175GHz, 5.25GHz, 5.7875GHz
Frequency Range：2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz
Antenna Type：Whip, Tilt
Number of Bands：3
VSWR：2
Return Loss：-
Gain：3dBi, 5dBi
Features：-
Termination：N Type Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：6.299" (160.00mm)
Applications：WLAN
Power - Max：-

Download product information

6GK57954MC000AA3

Overview

The Siemens 6GK57954MC000AA3 is an IWLAN antenna (ANT795-4MC) designed for industrial wireless communication. It operates within the 2.4 GHz and 5 GHz frequency bands, supporting protocols including Wi-Fi, Bluetooth, WLAN, and Zigbee. The device features a gain of 3 dBi at 2.4 GHz and 5 dBi at 5 GHz, with a nominal impedance of 50 Ohms and a VSWR of 2. It utilizes an RSMA connector and supports direct mounting on SCALANCE W devices. The antenna is rated for indoor use with an IP30 protection level and functions within a temperature range of -20°C to +60°C.

Feature Summary

Supports dual-band operation across 2.4 GHz and 5 GHz frequencies for versatile wireless connectivity.
Engineered for direct integration and permanent mounting onto SCALANCE W access points.
Constructed with an RSMA connector interface for secure signal transmission.
Provides linear vertical polarization optimized for standard industrial wireless applications.

Applications

Industrial Wireless LAN (IWLAN) infrastructure deployment
Integration with Siemens SCALANCE W series access points
Factory automation and process control wireless networks

Procurement Notes

Verify that the specific application environment remains within the specified operating temperature limits of -20°C to +60°C. Confirm compatibility with the connected SCALANCE W device requires an RSMA connector interface. Ensure national regulatory approvals for Wi-Fi compliance are observed during installation. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this model when direct mounting on SCALANCE W hardware is required rather than external cabling. Choose based on the need for compact form factors suitable for indoor industrial environments. Consider the IP30 rating as sufficient for protected areas but not for outdoor or harsh washdown conditions. Evaluate the 50 Ohm impedance match against existing RF chain components.

Part Context

This component belongs to the Siemens IWLAN antenna family, specifically the ANT795 series. It serves as a specialized accessory for expanding wireless coverage in industrial settings using Siemens networking equipment. The part number 6GK57954MC000AA3 identifies the specific variant with RSMA connectors and indoor ratings, distinct from outdoor-rated variants like the 4MX series.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with other ANT795 series models only if connector types and environmental ratings match exactly.
