6GK57956DC000AA0

Overview

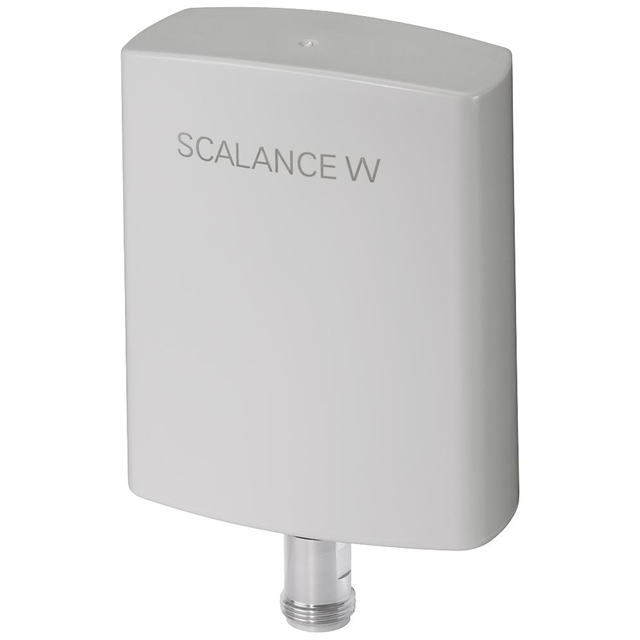

The Siemens 6GK5795-6DC00-0AA0 is an IWLAN antenna featuring a weak directional effect. It includes an N-female plug with a gain of 9 dBi. The device supports 2.4/5 GHz frequencies and complies with Wi-Fi standards while observing national approvals. It offers IP66/67 protection and operates within a temperature range of -40 to +80 °C.

Feature Summary

• Features a weak directional radiation pattern for focused signal transmission.
• Includes an integrated N-female connector for direct cabling.
• Provides high ingress protection suitable for harsh industrial environments.
• Operates reliably across a wide industrial temperature spectrum.

Applications

• Wall mounting in industrial wireless networks
• Mast mounting for extended coverage areas
• Compact installation scenarios requiring directional focus

Procurement Notes

Verify the exact part number format, as official documentation often uses hyphens (6GK5795-6DC00-0AA0). Confirm that the N-female connector matches your cable assembly requirements. Ensure the application environment stays within the specified -40 to +80 °C operating range to maintain performance integrity.

Selection Notes

Select this model when a weak directional effect is required rather than omnidirectional coverage. It is suitable for applications needing higher gain (9 dBi) compared to standard antennas. Consider the IP66/67 rating for outdoor or dirty indoor installations where dust and water resistance are critical.

Part Context

This component belongs to the SIMATIC NET family, specifically the ANT795 series designed for Industrial Wireless LAN. It complements Siemens communication processors by providing reliable physical layer connectivity for robust industrial networking infrastructure.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Verify compatibility with existing network controllers before replacing legacy models.
