Product Detailed Parameters
- Description：IRC ANTENNA ANT896-4MA
- Series：-
- Mfr：Siemens
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.2GHz, 2.6GHz
- Frequency Range：-
- Antenna Type：Whip, Tilt
- Number of Bands：11
- VSWR：2.5
- Return Loss：-
- Gain：2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi, 2dBi
- Features：-
- Termination：SMA
- Ingress Protection：IP54
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：8.268" (210.00mm)
- Applications：2G, 3G, 4G, GSM, LTE, UMTS
- Power - Max：-
Download product information
Overview

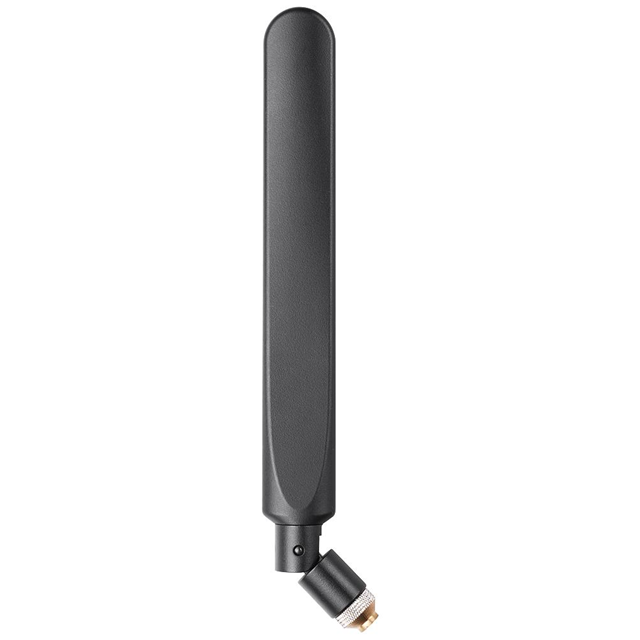

The Siemens ANT896-4MA (Order Number: 6GK5896-4MA00-0AA3) is a mobile wireless antenna designed for GSM, UMTS, and LTE networks. It features an omnidirectional radiation pattern with a gain of 2 dBi. The unit includes an SMA plug connector and offers radial rotatability with an additional joint for flexible positioning. It provides IP54 ingress protection and operates within a temperature range of -40°C to +85°C.
Feature Summary
- Supports GSM, UMTS, and LTE network standards
- Omnidirectional characteristic with 2 dBi gain
- Radially rotatable design with additional joint
- Includes SMA plug connection system
Applications
- Direct installation on mobile equipment
- Industrial wireless communication setups
- Control cabinet external connectivity
Procurement Notes
Verify the complete order number 6GK5896-4MA00-0AA3 against official Siemens documentation to ensure correct model identification. Confirm that national approval requirements are met for the specific deployment region. Check that the SMA plug interface matches the receiving device port. Ensure environmental conditions remain within the specified -40°C to +85°C operating range.
Selection Notes
Select this antenna when a compact, radially adjustable solution is required for mobile or semi-mobile industrial applications. The 2 dBi gain and omnidirectional pattern suit general coverage needs where high directional focus is unnecessary. Verify compatibility with existing SMA-based wireless modules before procurement.
Part Context
This component belongs to the Siemens ANT896 series of mobile wireless antennas. It complements other variants like the ANT896-4ME and ANT896-6MH, which offer different connectors and higher gains. The series targets diverse mounting scenarios from control cabinets to vehicle roofs across 2G, 3G, and 4G networks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the SMA connector type, 2 dBi gain specification, and IP54 rating. Consult Siemens technical support for cross-reference data if the original part is discontinued.
