Product Detailed Parameters
- Description：MOBILE RADIO ANTENNA ANT896-6MM
- Series：-
- Mfr：Siemens
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.2GHz, 2.545GHz, 2.6GHz, 3.65GHz
- Frequency Range：2.4GHz ~ 2.69GHz, 4.9GHz ~ 5.935GHz
- Antenna Type：Module
- Number of Bands：12
- VSWR：1.8
- Return Loss：-
- Gain：5dBi, 6dBi, 7dBi
- Features：-
- Termination：QMA
- Ingress Protection：IP68, IP69K
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：3.228" (82.00mm)
- Applications：GSM, LTE, UMTS
- Power - Max：-
Download product information
Overview

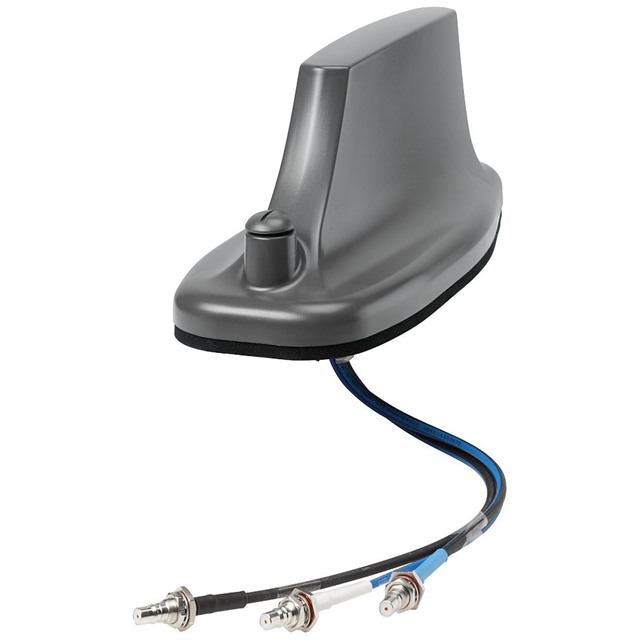

The Siemens 6GK58966MM000AA0 is a mobile radio antenna designated as ANT896-6mm, engineered for industrial wireless communication environments. It supports GSM (2G), UMTS (3G), LTE-EU (4G), GPS, and WLAN frequencies at 2.4/5 GHz. The component features an omnidirectional radiation pattern with a gain of 5/8 dBi and a maximum VSWR of 1.8. Physical dimensions include a height of 82.00 mm. It utilizes a connector interface compatible with standard mounting hardware.
Feature Summary
- Supports multiple cellular generations including 2G, 3G, and 4G LTE-EU alongside GPS and dual-band WLAN connectivity
- Omnidirectional design ensures consistent signal coverage in all horizontal directions
- Certified with E1 approval for compliance in specific regulatory markets
Applications
- Industrial Mobile Radio networks requiring robust wireless connectivity
- Integration with SIMATIC NET IWLAN systems for automated machinery
- GPS positioning applications within industrial automation setups
Procurement Notes
Verify the exact part number against official Siemens documentation to ensure compatibility with existing RCoax or device connectors. Confirm that the E1 certification requirement aligns with local regulatory standards for the installation site. Check for any specific mounting hardware requirements associated with the union nut fitting process described in official installation guides.
Selection Notes
Select this antenna when multi-band support for legacy and current cellular technologies is required in a single unit. The 5/8 dBi gain offers a balance between range and size for indoor or sheltered outdoor installations. Ensure the operating environment does not exceed the physical height constraints due to the 82 mm profile.
Part Context
This component belongs to the Siemens SIMATIC NET product family, specifically designed for Industrial Wireless LAN (IWLAN) solutions. It serves as a peripheral accessory for industrial switches and access points, enabling reliable data transmission in harsh industrial settings where wired connections are impractical.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Users should consult Siemens catalogs for newer iterations within the ANT series if this specific model is discontinued.
