Product Detailed Parameters
- Description：LINE FILTER 440VAC 6A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

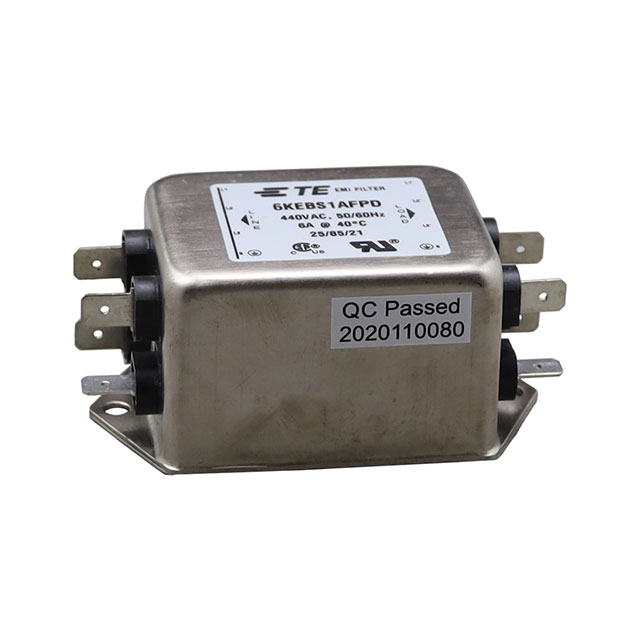

The TE Connectivity Corcom Filters 6KEBS1AFPD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a chassis mount configuration with flanged installation and faston termination style. The component operates at a rated voltage of 440 VAC and supports a current rating of 6 A at a frequency of 50 Hz. Key electrical specifications include a leakage current of 3 mA. The unit measures 62 mm in length, 39 mm in height, and complies with UL and CSA safety standards.
Feature Summary
- Provides effective electromagnetic interference suppression for three-phase power systems
- Features robust chassis mounting design with flanged installation for secure integration
- Utilizes faston termination style for straightforward circuit board connection
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise reduction
- Electrical control panel filtering
Procurement Notes
Verify the obsolete status before procurement as the manufacturer has announced end-of-life. Confirm lead times and final purchase availability through authorized distributors. Ensure compatibility with existing chassis dimensions and faston terminal requirements to avoid integration issues during replacement or new design implementation.
Selection Notes
Select this model for three-phase systems requiring 6 A capacity at 440 VAC. Verify that the faston termination style matches the target PCB or wiring harness. Consider the physical dimensions of 62 mm by 39 mm for enclosure space planning. Ensure compliance with UL and CSA standards meets specific regional regulatory requirements.
Part Context
This component belongs to the KEBS series of power line filters from TE Connectivity Corcom Filters. The series is engineered for industrial environments requiring reliable EMI/EMC performance. The part number indicates specific ratings and termination styles within the broader product family.
Replacement Considerations
As the component is marked as obsolete, verify if newer revisions or alternative series parts are available from TE Connectivity. Check datasheets for equivalent electrical ratings and mechanical footprints when sourcing substitutes.
