6KEBS1AFPDDM

Overview

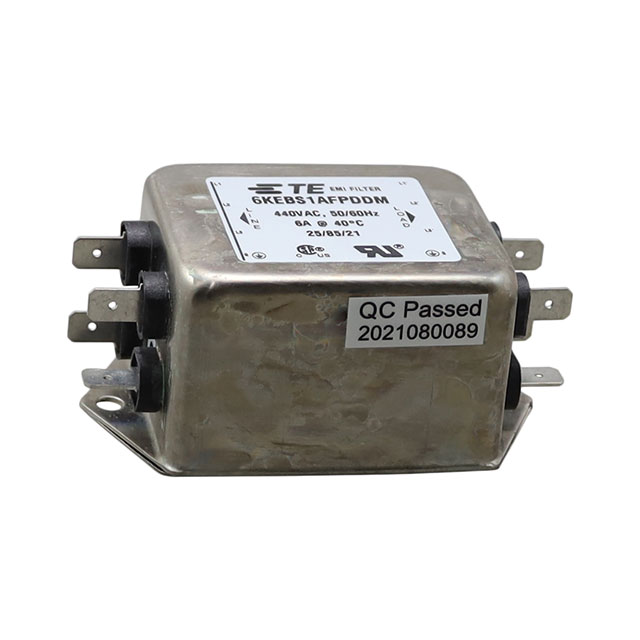

The 6KEBS1AFPDDM is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a Delta configuration and is rated for 440 VAC at 6 A with a 50 Hz operating frequency. The unit utilizes spade terminals for connection and is designed for chassis mounting. Key electrical specifications include a maximum leakage current of 3 mA. The component carries UL and CSA compliance certifications.

Feature Summary

• Provides electromagnetic interference suppression in three-phase circuits
• Designed for direct chassis mounting applications
• Utilizes spade terminal connections for circuit integration

Applications

• Industrial machinery requiring three-phase power filtering
• Electrical control panels utilizing 440V AC systems
• Equipment subject to strict EMC emission standards

Procurement Notes

Verify the exact suffix designation, as the provided model includes 'DM' while official listings often reference 'FPD'. Confirm availability status, as related variants may be obsolete or end-of-life. Ensure the specific voltage rating of 440 VAC matches the target application requirements before procurement.

Selection Notes

Select this component when a three-phase solution is required for 440 VAC systems. The 6 A rating suits moderate load applications. Verify that the chassis mounting style and spade terminal interface align with the enclosure design and wiring harness specifications.

Part Context

This part belongs to the Corcom power line filter portfolio, which specializes in EMI/RFI suppression solutions. The series typically covers various phase configurations and voltage ratings for industrial and commercial equipment protection against conducted noise.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer selection guides for equivalent three-phase filters with matching 440 VAC and 6 A ratings.
