6KEBS1BFPD

Overview

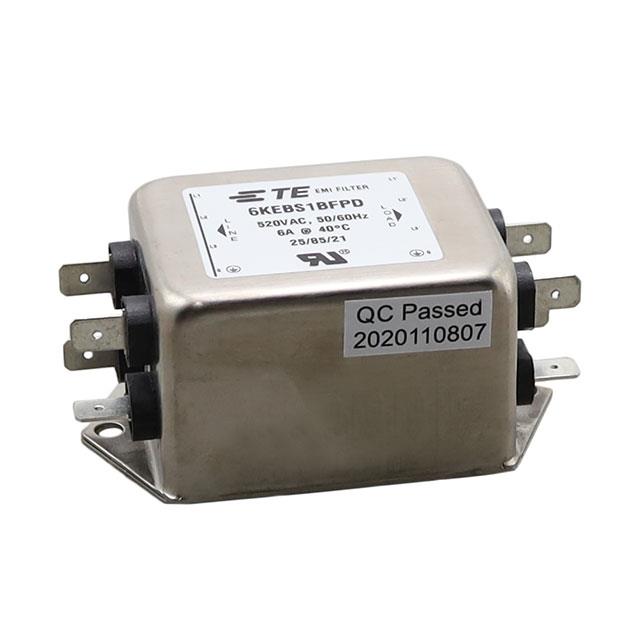

The 6KEBS1BFPD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom Filters. It features a KEB series design with a spade terminal configuration for delta connection. The unit is rated for 6A current and 520VAC voltage at 50Hz operating frequency. This component utilizes chassis mount installation and includes leakage current specifications suitable for industrial applications.

Feature Summary

• Provides three-phase EMI and EMC filtering capabilities for power line noise suppression
• Designed for delta connection configurations using spade terminals
• Supports high voltage AC environments up to 520VAC rating

Applications

• Industrial machinery power distribution systems
• Three-phase motor drive input stages
• Factory automation equipment requiring EMI suppression

Procurement Notes

Verify the specific voltage rating of 520VAC against your system requirements, as this differs from standard 440VAC variants. Confirm that the spade terminal type matches your wiring harness connectors. Check for end-of-life status or obsolescence notices from the manufacturer before finalizing procurement plans to ensure long-term supply availability.

Selection Notes

Select this model when three-phase delta topology is required rather than wye configurations. Ensure the 6A current rating aligns with the maximum load current of the protected circuit. Verify that chassis mounting provisions are available in the enclosure design to accommodate the physical dimensions of the filter unit.

Part Context

This component belongs to the KEB series of power line filters within the TE Connectivity Corcom portfolio. The series is engineered for robust electromagnetic interference reduction in demanding electrical environments. The part number suffix indicates specific terminal and voltage characteristics distinct from other KEB variants.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
