Product Detailed Parameters
- Description：LINE FILTER 440VAC 6A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

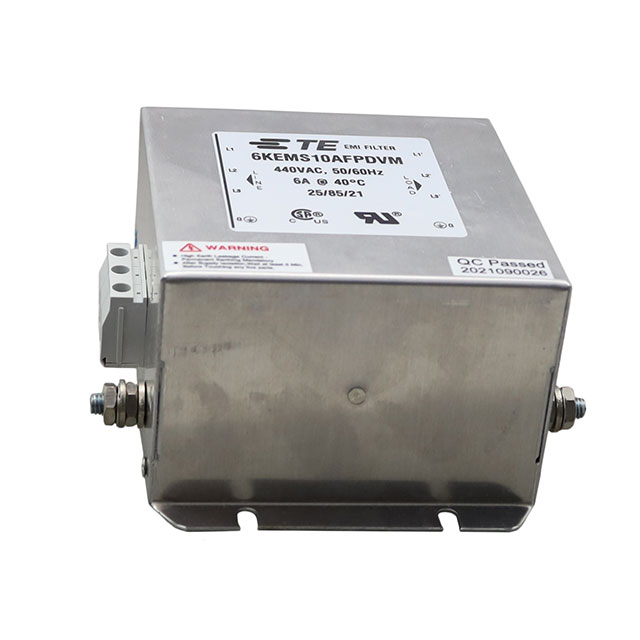

The 6KEMS10AFPDVM is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with spade terminals for delta configuration. The unit supports a voltage rating of 440 VAC and a current rating of 6 A at 50 Hz. Key electrical specifications include a leakage current of 3 mA. The component operates reliably within a temperature range of -25°C to +85°C.
Feature Summary
- Provides superior performance electromagnetic interference suppression for three-phase power lines
- Designed for chassis mounting with spade terminal connections
- Operates reliably in both cold industrial environments and high-temperature applications
Applications
- Industrial machinery requiring three-phase power conditioning
- Equipment operating in high-temperature environments
- Cold industrial settings requiring reliable filter performance
Procurement Notes
Verify the exact suffix VM against official TE Connectivity documentation to confirm specific manufacturing revisions or packaging variations. Confirm chassis mount compatibility and spade terminal dimensions prior to integration. Ensure the 440 VAC rating aligns with the target system voltage. Check for end-of-life status as related KEM series models may be discontinued.
Selection Notes
Select this model when a three-phase filter with 6 A capacity and spade terminals is required. The chassis mount style suits panel installations. Verify that the 3 mA leakage current meets safety standards for the application. Consider the -25°C to +85°C operating range for environmental suitability.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity Corcom. The series includes various current ratings and terminal styles. The 6KEMS10AFPDVM specifically addresses low-current three-phase applications requiring compact chassis mounting solutions.
Replacement Considerations
Check for direct substitutes within the KEM series with matching 6 A ratings and spade terminals. Verify equivalent leakage current and voltage ratings. Cross-reference datasheets for physical dimension compatibility.
