Product Detailed Parameters
- Description：LINE FILTER 440VAC 6A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

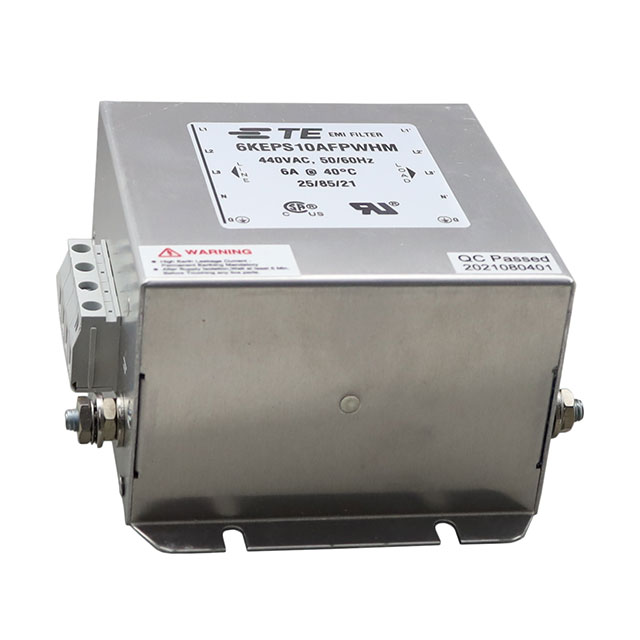

The 6KEPS10AFPWHM is a three-phase power line filter from the TE Connectivity Corcom KEP series, designed for general-purpose electromagnetic interference mitigation. It features a single-stage configuration with a current rating of 6 A and a voltage rating of 440 VAC. The unit operates at frequencies of 50 Hz and 60 Hz, utilizing terminal block connections for input and output. Physical dimensions are optimized for DIN rail mounting, ensuring secure installation in industrial control panels.
Feature Summary
- Single-stage EMI/EMC filtering architecture
- Terminal block connectivity for straightforward wiring
- DIN rail mounting capability for panel integration
Applications
- General-purpose industrial equipment protection
- Three-phase power distribution systems
- Electromagnetic interference suppression in control cabinets
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential obsolescence risks. Confirm technical specifications against official datasheets prior to integration. Ensure compliance with local safety standards such as UL or CSA where applicable. Validate mechanical fit for DIN rail mounting constraints within the target enclosure design.
Selection Notes
Select this model for applications requiring 6 A capacity at 440 VAC with single-stage attenuation. Consider terminal block termination requirements and DIN rail compatibility during mechanical design. Evaluate leakage current characteristics against system safety limits. Compare performance metrics with alternative KEP series variants if higher current ratings are needed.
Part Context
This component belongs to the Corcom KEP series, a range of three-phase power line filters manufactured by TE Connectivity. The series provides standardized EMC solutions for industrial environments, emphasizing reliable noise reduction and robust construction for demanding operational conditions.
Replacement Considerations
Consult official TE Connectivity documentation for direct substitute part numbers. Verify that any replacement maintains identical electrical ratings, mounting style, and termination type to ensure seamless system integration without redesign.
