Product Detailed Parameters
- Description：LINE FILTER 440VAC 6A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

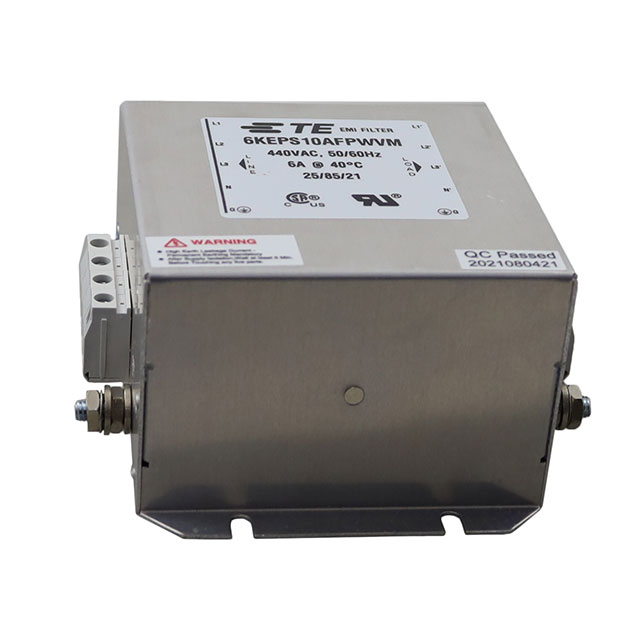

The 6KEPS10AFPWVM is a three-phase Wye EMC/EMI line filter manufactured by TE Connectivity Corcom Filters. It supports an operating frequency of 50 to 60 Hz and handles a rated current of 6 A at 440 VAC. The unit utilizes terminal block connections for secure installation. Designed for chassis mounting, this single-stage filter provides essential power line conditioning within industrial environments.
Feature Summary
- Provides effective EMI/EMC suppression for three-phase power systems
- Features robust terminal block connections for reliable electrical interfacing
- Engineered for direct chassis mounting in industrial enclosures
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Factory automation equipment filtering
Procurement Notes
Verify the complete part number including the VM suffix against official TE Connectivity documentation before procurement. Confirm that the specific voltage and current ratings align with your system requirements. Ensure compatibility with existing chassis mounting hardware and terminal block specifications to prevent integration issues during installation.
Selection Notes
Select this component when a compact three-phase solution is required for lower current applications up to 6 A. The Wye configuration suits systems requiring neutral reference filtering. Verify that the terminal block interface matches available wiring methods. Consider the physical dimensions for chassis space allocation during the design phase.
Part Context
This model belongs to the KEP series of superior performance EMI filters from TE Connectivity Corcom. The series targets industrial applications demanding reliable noise reduction. The specific designation indicates its three-phase capability and current handling capacity within the broader product portfolio.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Generic cross-references may not match the specific leakage current or attenuation characteristics required for compliance.
