Product Detailed Parameters
- Description：LINE FILTER 520VAC 6A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

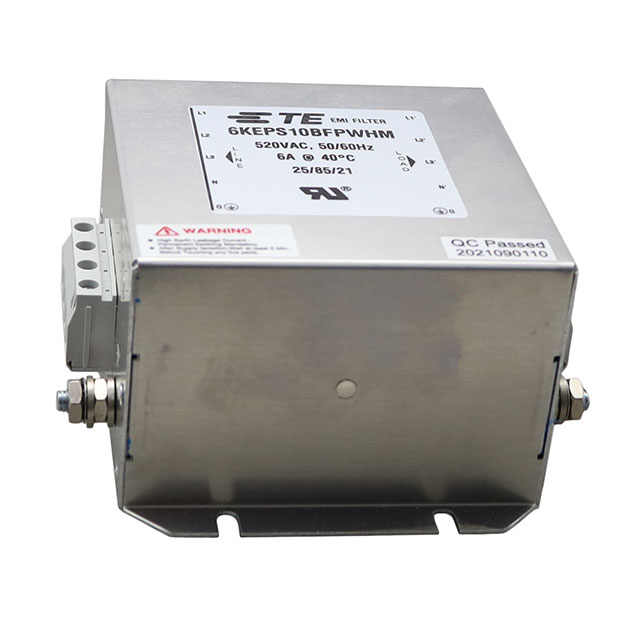

The TE Connectivity Corcom Filters 6KEPS10BFPWHM is a three-phase EMI/EMC power line filter designed for general-purpose applications. It features a single-stage configuration with a voltage rating of 520 VAC and a current rating of 6 A. The unit operates at frequencies of 50 to 60 Hz and utilizes terminal block connections for both input and output. It supports WYE (4 wire + ground) configurations and offers chassis or DIN rail mounting options.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase systems
- Supports flexible installation via chassis or DIN rail mounting styles
- Utilizes terminal block connections for secure electrical interfacing
Applications
- General-purpose industrial equipment requiring EMI suppression
- Three-phase power distribution systems operating at 520 VAC
- Electrical enclosures utilizing DIN rail or chassis mounting infrastructure
Procurement Notes
Verify the specific mounting requirement, as datasheets indicate compatibility with both chassis and DIN rail installations. Confirm that the application requires a single-stage filter topology with a 6 A current rating. Ensure the system voltage matches the 520 VAC rating and that terminal block termination aligns with existing wiring infrastructure before finalizing procurement.
Selection Notes
Select this component when a compact three-phase filter is needed for 520 VAC systems. It is suitable for environments where DIN rail or chassis mounting is preferred over panel penetration. The 6 A rating defines its capacity; ensure load currents remain within limits. Verify that the WYE configuration matches the source power supply type.
Part Context
This model belongs to the Corcom power line filter series by TE Connectivity. It addresses noise reduction in three-phase circuits. The product line typically includes various current ratings and mounting styles to accommodate diverse industrial power conditioning needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 6 A rating, 520 VAC voltage, and terminal block interface specifications.
