Product Detailed Parameters
- Description：LINE FILTER 440VAC 6A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

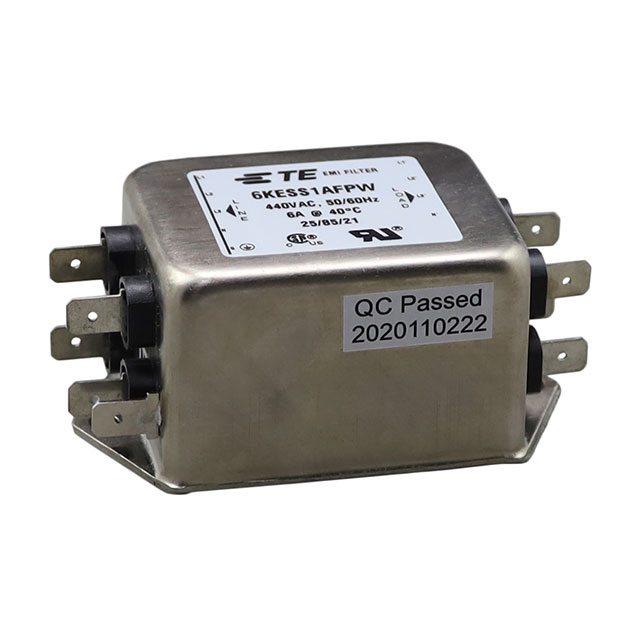

The TE Connectivity Corcom Filters 6KESS1AFPW is a three-phase general-purpose EMI/EMC power line filter designed for chassis mounting. It features a spade terminal connection type and supports a rated voltage of 440 VAC with a current rating of 6 A. The component operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 3 mA. Certified by UL and CSA, it is suitable for industrial applications requiring reliable power conditioning.
Feature Summary
- Provides effective attenuation of electromagnetic interference in three-phase power systems
- Utilizes spade terminals for secure and rapid electrical connections
- Complies with international safety standards including UL and CSA certifications
Applications
- Industrial machinery power supply units
- Three-phase motor drive systems
- General purpose power distribution panels
Procurement Notes
Verify the obsolete lifecycle status before procurement planning. Confirm that spade terminals match existing harness specifications. Ensure chassis mounting dimensions align with enclosure designs. Check for updated datasheets to confirm compliance requirements remain valid for the target application environment.
Selection Notes
Select this model when a low-current three-phase filter is required for 440 VAC systems. Compare against the 6KESS1BFPW variant which shares similar ratings but may differ in specific terminal configurations or voltage tolerances. Ensure the 6 A rating meets the load requirements without exceeding thermal limits during continuous operation.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity Corcom. The series offers various current ratings and terminal options for three-phase applications. The 6KESS1AFPW specifically addresses lower current needs within this lineup, providing a compact solution for EMI suppression in standard industrial power environments.
Replacement Considerations
The 6KESS1BFPW is a documented alternative within the same product family. Verify compatibility regarding terminal types and exact voltage ratings before substitution.
