Product Detailed Parameters
- Description：LINE FILTER 440VAC 6A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

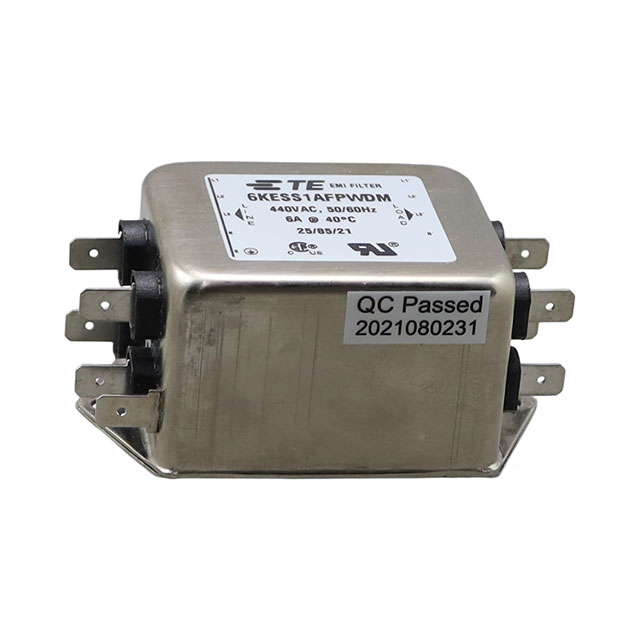

The TE Connectivity Corcom Filters 6KESS1AFPWDM is a three-phase EMI/EMC power line filter designed for industrial applications. It features a 6 A current rating and operates at voltages up to 440 VAC with a leakage current of 3 mA. The unit supports 50 Hz and 60 Hz frequencies and utilizes .250" faston terminals for both input and output connections. Constructed for chassis or DIN rail mounting, it provides single-stage filtering compliant with UL and CSA standards.
Feature Summary
- Provides three-phase EMI/EMC noise suppression for sensitive electronic equipment
- Features quick-connect faston terminals for simplified circuit integration
- Includes voltage selector capability for flexible system configuration
Applications
- Industrial machinery power distribution systems
- Three-phase motor drive protection circuits
- Commercial HVAC control panels
Procurement Notes
Verify the specific terminal configuration and mounting style against your schematic before ordering. Confirm that the 6 A rating and 440 VAC limit meet your system requirements. Check for RoHS compliance status if required by your manufacturing process. Ensure the chassis mount dimensions fit your enclosure layout.
Selection Notes
Select this model when three-phase filtering is required for loads up to 6 A. Compare with the 6KEBS1AFPD variant if delta configuration is needed instead of wye. Consider the 6EL4M series for single-phase applications requiring similar form factors. Verify panel cutout dimensions if using alternative mounting methods.
Part Context
This component belongs to the Corcom KES series of power line filters. It is part of TE Connectivity's broader portfolio of electromagnetic interference suppression solutions. The series is engineered for durability in harsh industrial environments while maintaining low leakage currents.
Replacement Considerations
The 6KEBS1AFPD is a documented substitute offering similar electrical ratings but configured for Delta connection rather than Wye. Verify terminal orientation and mounting hole patterns when swapping between these variants to ensure mechanical compatibility.
