Product Detailed Parameters
- Description：LINE FILTER 520VAC 6A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

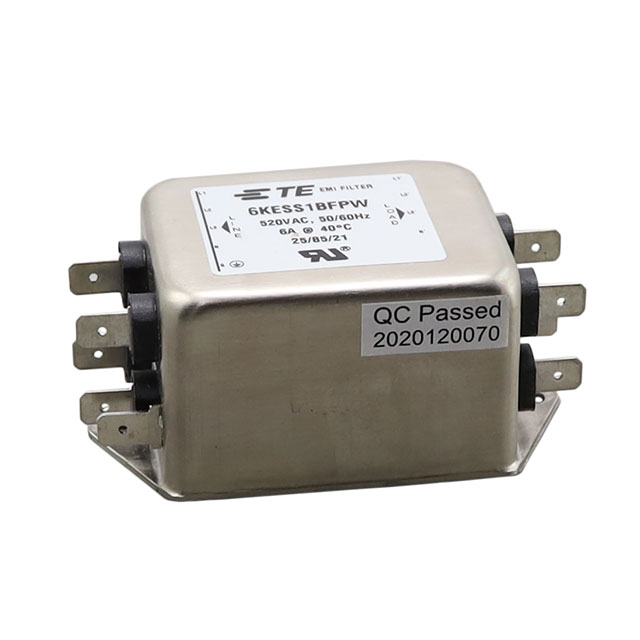

The TE Connectivity Corcom Filters 6KESS1BFPW is a three-phase EMI/EMC power line filter designed for chassis mounting. It features a rated voltage of 520 VAC and a current rating of 6 A at 50 Hz. The unit utilizes faston spade terminals for electrical connections and has a maximum leakage current of 3 mA. Physical dimensions are 85 mm in length, 39 mm in height, with UL and CSA compliance.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Utilizes faston spade terminal connections for secure wiring
- Designed for direct chassis mounting installation
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise reduction
- Electrical panel integration
Procurement Notes
Verify component status as the manufacturer indicates this part is approaching end-of-life. Confirm specific datasheet revisions and final availability windows before procurement planning to ensure supply continuity for production requirements.
Selection Notes
Select this model for applications requiring 520 VAC three-phase filtering with 6 A capacity. Ensure chassis mounting space accommodates the specified physical dimensions. Verify that faston terminal compatibility matches existing wiring harness specifications.
Part Context
This component belongs to the TE Connectivity Corcom KES series of power line filters. It is engineered for general-purpose EMI/EMC suppression in industrial environments. The product adheres to international safety standards including UL and CSA certifications for global deployment.
Replacement Considerations
Consult official TE Connectivity documentation for confirmed substitute part numbers due to the end-of-life status. Do not assume cross-compatibility with other series without verifying electrical and mechanical parameters.
