Product Detailed Parameters
- Description：LINE FILTER 520VAC 6A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：6:00 AM
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

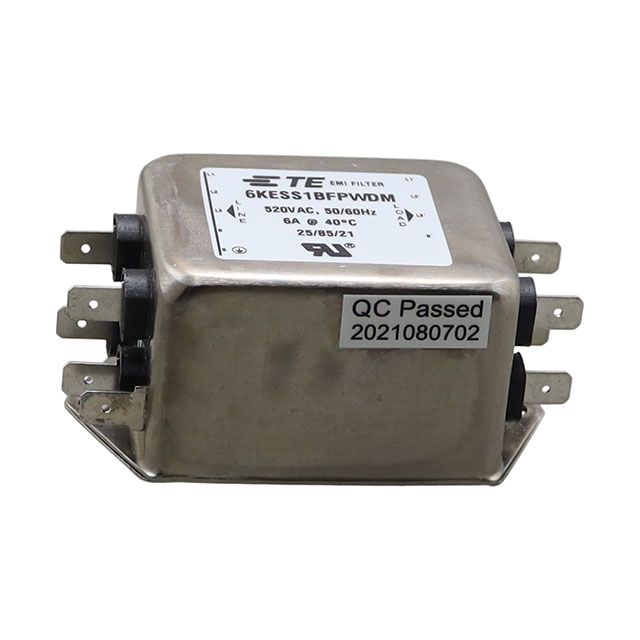

The 6KESS1BFPWDM is a three-phase EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It supports a rated voltage of 520 VAC and a current rating of 6 A at operating frequencies of 50 Hz and 60 Hz. The device features a single-stage configuration with quick connect terminals for chassis or DIN rail mounting. It has a maximum leakage current of 3 mA and complies with UL and CSA standards.
Feature Summary
- Provides EMI/RFI noise suppression for three-phase wye systems
- Supports both chassis mount and DIN rail installation styles
- Features quick connect terminal termination for simplified wiring
Applications
- Industrial machinery power conditioning
- Three-phase motor drive input filtering
- General purpose power distribution units
Procurement Notes
Verify the exact suffix against official TE Connectivity documentation to confirm mounting style and terminal type, as variations exist within the KESS series. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region and production batch.
Selection Notes
Select this component when three-phase EMI filtering is required for equipment operating at 520 VAC. Ensure the application environment accommodates the specified temperature range and that the mounting surface supports either chassis or DIN rail configurations. Verify that the 6 A current rating meets the load requirements without exceeding thermal limits.
Part Context
This part belongs to the TE Connectivity Corcom KESS series of power line filters. The series is designed for industrial applications requiring robust EMI suppression in three-phase power systems. The specific model indicates a wye configuration with standardized quick-connect interfaces suitable for panel integration.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific electrical characteristics or mounting dimensions of this three-phase unit.
