Product Detailed Parameters
- Description：LINE FILTER 250VAC 6A CHASS MNT
- Series：MV
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Tray
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

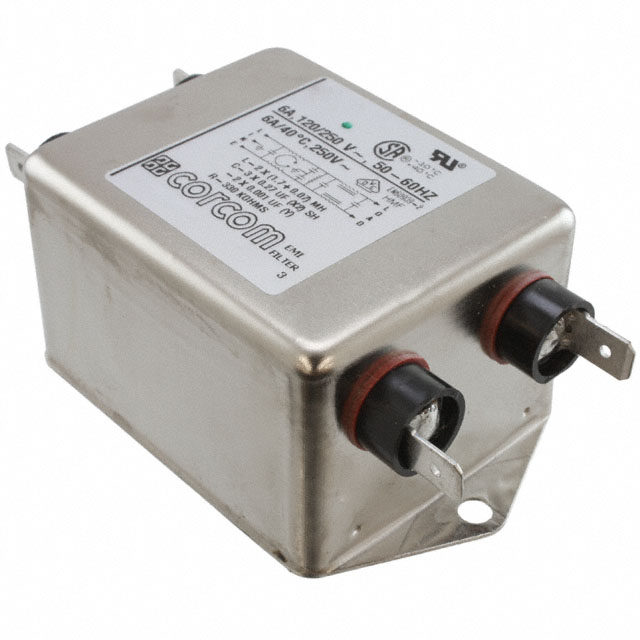

The TE Connectivity Corcom Filters 6MV1 is a single-phase EMC/EMI line filter designed for flange mounting. It features a two-stage filtering configuration to suppress electromagnetic and radio frequency interference in AC power lines. The component supports a rated current of 6 A at 250 VAC with a working frequency of 50/60 Hz. Electrical termination is achieved via quick connect terminals. This module is certified by UL, CSA, and VDE, ensuring compliance with international safety standards for medical and general industrial applications.
Feature Summary
- Two-stage EMI/RFI filtering architecture for enhanced noise suppression
- Flange mount design for secure chassis or panel installation
- Quick connect terminal interface for simplified wiring integration
- Certified for medical and multi-purpose industrial environments
Applications
- Medical equipment power input stages
- Industrial control systems requiring EMI suppression
- General purpose AC power line conditioning
Procurement Notes
Verify the specific datasheet version and certification status prior to procurement, as regulatory approvals may vary by region. Confirm that the quick connect terminal dimensions match the target PCB or wire harness specifications. Ensure the flange mounting hole pattern aligns with the enclosure design requirements before finalizing the purchase order.
Selection Notes
Select this component when a two-stage filtering solution is required for 6 A circuits operating at 250 VAC. The flange mount style is suitable for applications needing robust mechanical stability. Ensure the application environment does not exceed the specified temperature range and that the quick connect terminals are compatible with the available wiring gauge.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for various industrial and medical applications. The 6MV1 model specifically addresses the need for compact, high-performance EMI suppression in space-constrained enclosures while maintaining compliance with stringent medical safety standards.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs if considering alternative models from the same manufacturer or other suppliers.
