6NH98601AA00

$91.62

Description：SINAUT ANT 794-4MR ANTENNA GSM Q
Series：-
Mfr：Siemens
Package：Box

SKU:4c6e450215e1 Category: RF Antennas Brand: Siemens

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SINAUT ANT 794-4MR ANTENNA GSM Q
Series：-
Mfr：Siemens
Package：Box
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.6GHz
Frequency Range：-
Antenna Type：Whip, Straight
Number of Bands：6
VSWR：1.9
Return Loss：-
Gain：0dBi
Features：Cable - 5m
Termination：SMA Male
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：7.598" (193.00mm)
Applications：GSM, LTE, UMTS
Power - Max：-

Download product information

6NH98601AA00

Overview

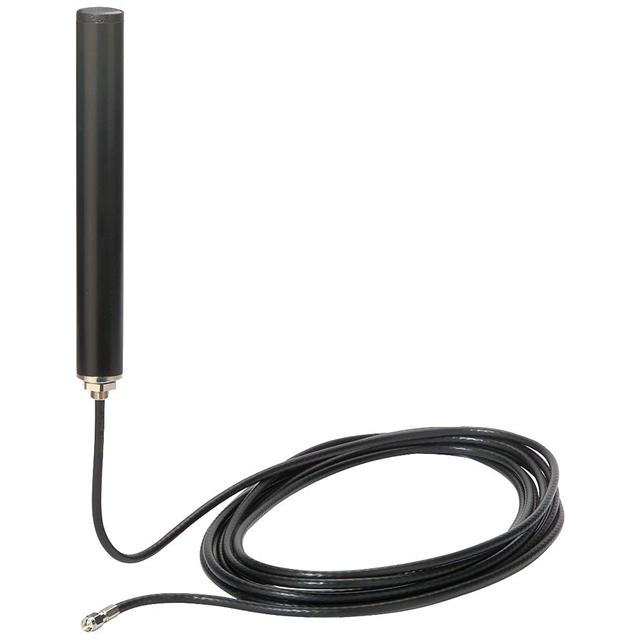

The Siemens ANT794-4MR (6NH98601AA00) is a rod-type omnidirectional antenna designed for mobile wireless communication networks in the European Union. It supports 2G GSM, 3G UMTS, and 4G LTE frequency bands ranging from 800 MHz to 2600 MHz. The unit features a fixed 5-meter connection cable terminated with an SMA male connector for bracket mounting. Constructed as a monopole antenna, it provides weatherproof performance suitable for both indoor and outdoor applications.

Feature Summary

Omnidirectional radiation pattern for consistent signal coverage
Weatherproof construction rated IP65 for durability
Fixed 5-meter cable length with SMA male interface

Applications

Indoor mobile radio installations
Outdoor mobile radio installations
2G/3G/4G EU network connectivity

Procurement Notes

Verify that the required frequency range aligns with the specified 800–2600 MHz support for GSM, UMTS, and LTE EU standards. Confirm the necessity of the fixed 5-meter cable length and SMA male connector type for your specific mounting configuration. Ensure the IP65 rating meets environmental requirements for the intended installation location.

Selection Notes

Select this component when a dedicated omnidirectional solution is required for EU-based cellular networks. The integrated 5-meter cable simplifies installation by eliminating the need for separate coaxial runs. Consider the weatherproof design if the deployment environment exposes the equipment to external elements or varying humidity levels.

Part Context

This part belongs to the SINAUT series of RF antennas manufactured by Siemens. It serves as a specialized accessory for industrial and commercial mobile communication systems, providing reliable connectivity for user equipment operating on standard European cellular frequencies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mounting brackets and connector types before considering alternative models.
