6SL32020AE214SA0

$813.49

Description：LINE FILTER 14A CHASSIS MOUNT
Series：-
Mfr：Siemens
Package：Box

SKU:a326fb05a041 Category: Power Line Filter Modules Brand: Siemens

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 14A CHASSIS MOUNT
Series：-
Mfr：Siemens
Package：Box
Filter Type：-
Configuration：-
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：14 A
Frequency - Operating：-
Applications：-
Approval Agency：-
Operating Temperature：-
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M5)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：380 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

6SL32020AE214SA0

Overview

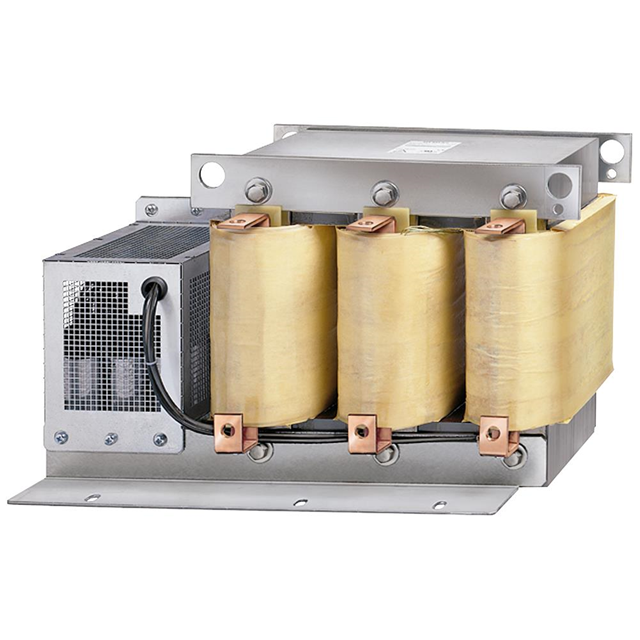

The Siemens 6SL32020AE214SA0 is a sinusoidal output filter designed for SINAMICS G120D power modules. It supports three-phase AC voltages ranging from 380 to 480 V and handles a continuous current of 14 A. The unit is engineered for frame size FSB and allows base mounting. This component filters PWM output to produce sine-wave voltage, protecting motors in distributed drive applications.

Feature Summary

Filters pulse-width modulation output to generate sinusoidal voltage waveforms
Enables direct base mounting on compatible power module frames
Supports integration into distributed drive systems with high availability

Applications

SINAMICS G120D distributed drive systems
Conveyor belt automation and transport systems
Motor protection in harsh industrial environments

Procurement Notes

Verify the complete order code matches the required frame size and current rating. Confirm compatibility with the specific SINAMICS G120D power module variant. Ensure the installation environment meets the specified voltage and phase requirements for safe operation.

Selection Notes

Select this filter when using SINAMICS G120D drives with frame size FSB. It is required for motor protection against cable-induced overvoltages. Ensure the motor current does not exceed the filter's rated capacity of 14 A for reliable performance.

Part Context

This component belongs to the SINAMICS accessory family, specifically designed as an output filter for the G120D series. It complements the drive system by improving signal quality and extending motor life in demanding industrial automation scenarios.
