6SL32020AE218CA0

$395.29

Description：LINE FILTER 18.5A CHASSIS MOUNT
Series：-
Mfr：Siemens
Package：Box

SKU:ef6e4d570cf5 Category: Power Line Filter Modules Brand: Siemens

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 18.5A CHASSIS MOUNT
Series：-
Mfr：Siemens
Package：Box
Filter Type：-
Configuration：-
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：18.5 A
Frequency - Operating：-
Applications：-
Approval Agency：-
Operating Temperature：-
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

6SL32020AE218CA0

Overview

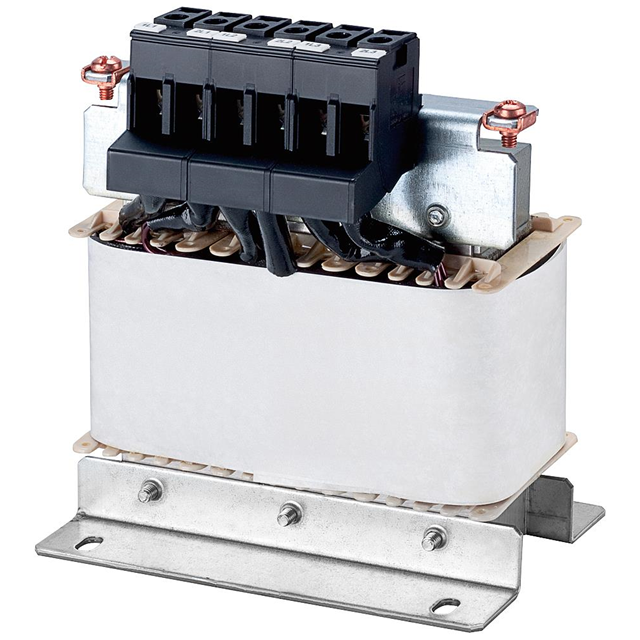

The Siemens 6SL3202-0AE21-8CA0 is a SINAMICS output reactor designed for power modules in the FSB series. It supports three-phase AC systems with voltage ratings between 380V and 480V. The component has a rated current of 18.5A and a power loss of 0.080 kW.

Feature Summary

Designed specifically for SINAMICS power modules in the FSB series
Compatible with three-phase AC systems operating at 380V to 480V

Applications

Integration with SINAMICS FSB power modules
Three-phase AC drive systems (380V-480V)
Output filtering for motor drives

Procurement Notes

Verify the article number 6SL3202-0AE21-8CA0 against official Siemens documentation to ensure compatibility with your specific SINAMICS FSB power module. Confirm that the system voltage falls within the 380V to 480V range and that the load current does not exceed 18.5A. Cross-reference technical data sheets for any updates on mechanical or electrical specifications before procurement.

Selection Notes

Select this component when using SINAMICS FSB power modules requiring an output reactor for three-phase AC applications between 380V and 480V. Ensure the rated current requirement matches the 18.5A specification. This part is intended for use with specific Siemens drive families; verify module compatibility to avoid integration issues.

Part Context

This output reactor belongs to the SINAMICS product family, specifically engineered for FSB power modules. It serves as a passive component to manage output characteristics in variable frequency drive systems. The design aligns with Siemens' industrial automation standards for motor control applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Siemens technical support for compatible alternatives if this specific article number is unavailable.
