Product Detailed Parameters
- Description：LINE FILTER 204A CHASSIS MOUNT
- Series：6SL3203
- Mfr：Siemens
- Package：Box
- Filter Type：-
- Configuration：-
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：204 A
- Frequency - Operating：-
- Applications：-
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：380 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

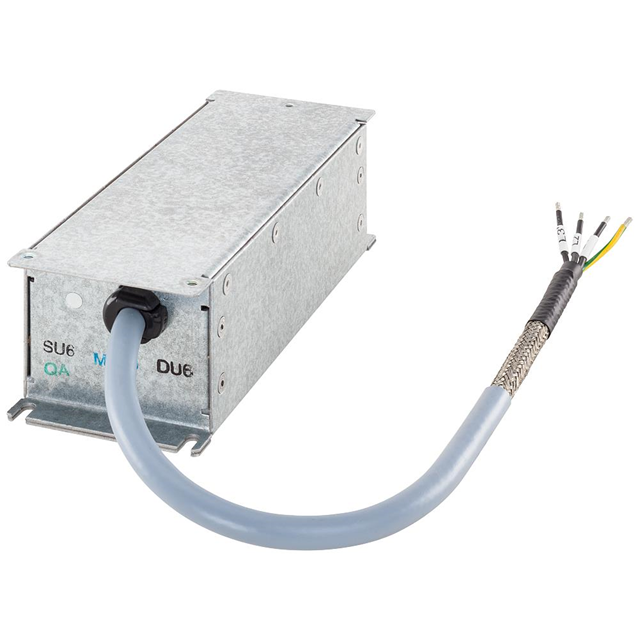

The Siemens 6SL32030BE318BA0 is a SINAMICS Class B line filter designed for three-phase AC power modules. It supports an input voltage range of 380 to 480 V and handles a rated current of 204 A. This component functions as an EMC/EMI line filter, utilizing terminal block connections to mitigate electromagnetic interference in industrial drive systems.
Feature Summary
- Provides electromagnetic compatibility filtering for SINAMICS drive applications
- Designed specifically for Class B emission standards
- Compatible with three-phase AC power module configurations
Applications
- SINAMICS Power Module FSF integration
- Industrial motor drive systems requiring Class B compliance
- Three-phase AC power supply lines
Procurement Notes
Verify the complete article number against official Siemens documentation before procurement. Confirm that the specific application requires Class B filtering rather than Class A. Ensure the input voltage and current ratings match the system requirements precisely. Check for any regional distribution restrictions or availability constraints directly from authorized channels.
Selection Notes
Select this unit when Class B emission limits are mandatory for the installation environment. Ensure the connected power module operates within the 380-480 V AC range. Verify that the 204 A current rating exceeds the maximum expected load. Confirm compatibility with the specific SINAMICS series intended for use.
Part Context
This component belongs to the Siemens SINAMICS accessory family, specifically categorized as a line filter. It is engineered to complement SINAMICS power modules, ensuring regulatory compliance for electromagnetic emissions in industrial settings. The product is distinct from general-purpose filters due to its specific tuning for drive harmonics.
Replacement Considerations
Consult official Siemens substitution guides for verified equivalents. Generic filters may not meet Class B requirements or current ratings. Ensure any substitute matches the terminal block interface and physical mounting dimensions.
