6U52002001

Oscillators Overview

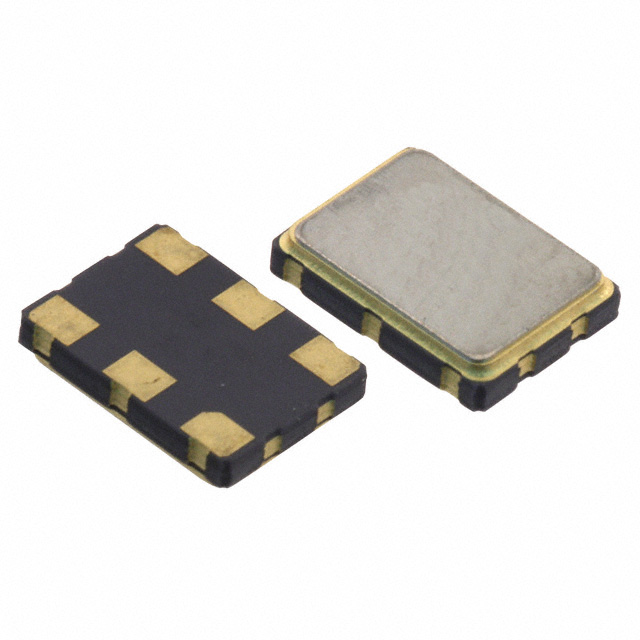

The TXC Corporation 6U52002001 is a Voltage-Controlled Crystal Oscillator (VCXO) operating at a nominal frequency of 52 MHz. It utilizes CMOS output logic and functions within a supply voltage range of 3.3 V. The device features an enable/disable control function and offers a frequency stability of ±50 ppm. It is designed for operation across an extended temperature range from -40°C to +85°C. The component is housed in a compact 7 mm x 5 mm surface-mount package with six pins, suitable for space-constrained electronic designs requiring precise timing signals.

Oscillators Feature Summary

• Voltage-controlled crystal oscillator architecture providing tunable frequency output
• CMOS output interface compatible with standard digital logic circuits
• Integrated enable and disable functionality for power management
• Extended industrial temperature rating ensuring reliable performance

Oscillators Applications

• Telecommunications equipment requiring precise clock synchronization
• Data communication systems utilizing high-frequency signal generation
• Industrial control systems needing stable timing references
• Consumer electronics with space-constrained PCB layouts

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required frequency tolerance and packaging options. Confirm that the requested quantity aligns with the manufacturer's minimum order requirements and reel specifications. Cross-reference the part number with the latest revision history to avoid discrepancies in pinout or electrical characteristics during procurement.

Oscillators Selection Notes

Select this component when a voltage-controlled oscillation capability is required alongside standard CMOS output levels. Ensure the system design accommodates the 3.3 V supply requirement and the specified ±50 ppm stability constraint. Consider the 7x5 mm footprint for layout planning and verify that the operational temperature range meets the environmental conditions of the target application without requiring additional thermal management.

Oscillators Part Context

This VCXO belongs to the 6U series of ultra-miniature oscillators from TXC Corporation. The series focuses on low profile and small form factor designs suitable for modern portable and high-density electronics. The 6U52002001 specifically addresses applications needing a 52 MHz reference with voltage tuning capabilities, distinguishing it from fixed-frequency crystal oscillators within the same product family.

Oscillators Replacement Considerations

Consult the official TXC Corporation cross-reference guide for verified substitute part numbers. Direct replacements must match the 52 MHz frequency, 3.3 V supply, CMOS output, and 6-pin SMD package configuration. Verify that any alternative component maintains the ±50 ppm stability and -40°C to +85°C operating range to ensure functional equivalence in the existing circuit design.
