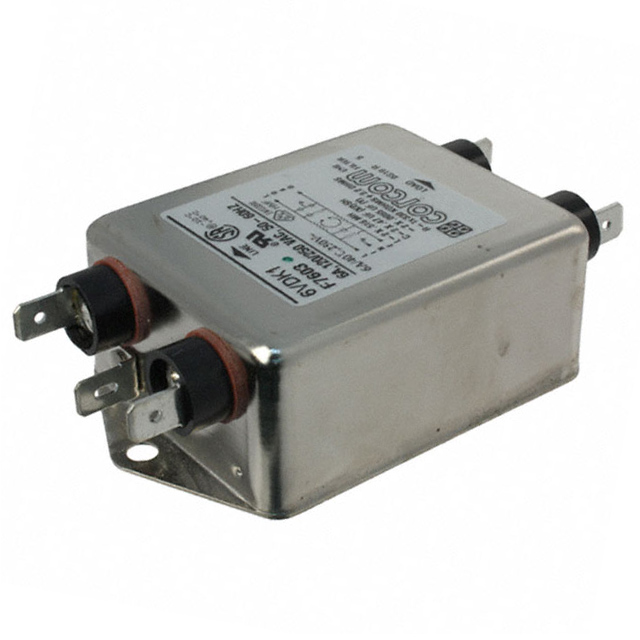

6VDK1

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：DK
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:ce3c7ec3a6d8 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：DK
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：516µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

6VDK1

Overview

The TE Connectivity Corcom Filters model 6VDK1 is a single-phase EMI/RFI power line filter module designed for chassis mounting. It features a rated AC voltage of 250V and a current rating of 6A, operating at frequencies of 50Hz and 60Hz. The component utilizes faston terminals for connection and includes an integrated switch function. Certified by CSA, UR, and VDE agencies, it is suitable for general applications requiring electromagnetic interference suppression in industrial or commercial equipment environments.

Feature Summary

Provides effective EMI/RFI filtering for single-phase power lines
Integrates a built-in switch mechanism for operational control
Supports secure chassis mounting configurations
Utilizes faston terminal style for reliable electrical connections

Applications

Industrial machinery power supply circuits
Commercial electronic equipment EMC compliance
General-purpose power line noise suppression

Procurement Notes

Verify the specific datasheet version and certification marks (CSA, UR, VDE) against project requirements before procurement. Confirm that the faston terminal dimensions match the mating connector specifications. Ensure the chassis mounting hole pattern aligns with the enclosure design to guarantee proper mechanical fit and grounding integrity during installation.

Selection Notes

Select this component when a combined filtering and switching solution is required for single-phase AC systems up to 250VAC. Consider the 6A current rating and chassis mount form factor as primary constraints. Evaluate the need for integrated switching functionality versus separate switch components to optimize board space and assembly complexity within the target application architecture.

Part Context

This part belongs to the Corcom filters series, recognized globally for EMI/RFI filtering solutions. It represents a specialized power line filter module category within TE Connectivity's portfolio, focusing on robust electromagnetic compatibility performance for demanding industrial and commercial power distribution applications.
