6VG1

Overview

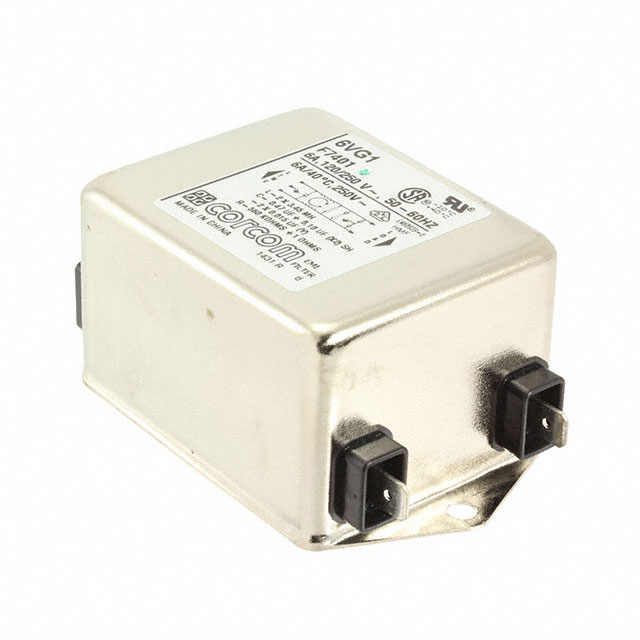

The TE Connectivity Corcom Filters 6VG1 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current of 6A at 50/60Hz frequencies. The component features a single-stage configuration with quick connect terminals for circuit integration. It is certified by CSA, UR, and VDE agencies for safety compliance.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for AC power lines
• Designed for secure chassis mounting installation
• Utilizes quick connect terminal style for efficient wiring

Applications

• Industrial automation equipment
• Medical devices
• Telecommunications systems

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and physical dimensions before finalizing design integration. Ensure that the quick connect terminal spacing matches the mating connector requirements on the target PCB or harness assembly to guarantee proper electrical contact and mechanical stability during operation.

Selection Notes

Select this component when a single-stage filtering solution is sufficient for the application's noise profile. Confirm that the 6A current rating aligns with the maximum load requirements. Verify that the chassis mounting form factor fits within the available enclosure space and that the quick connect interface is compatible with the system's wiring architecture.

Part Context

This part belongs to the TE Connectivity Corcom Filters portfolio, which specializes in electromagnetic compatibility solutions. The series includes various single-phase and three-phase filters designed to mitigate conducted interference in commercial and industrial environments, ensuring adherence to international regulatory standards for electronic equipment.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation.
