6VN1

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：N
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:8156454b36da Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：N
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：4.47mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

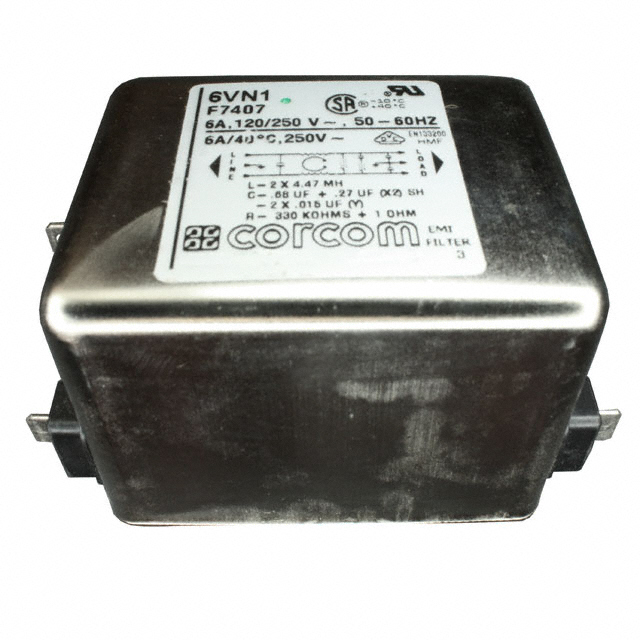

6VN1

Overview

The TE Connectivity Corcom Filters 6VN1 is a single-phase EMI/RFI power line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current rating of 6A at 50/60Hz. The unit features a two-stage filtering configuration with quick connect terminals. Maximum leakage current is specified as 1.2 mA at 120 VAC 60 Hz and 2.0 mA at 250 VAC 50 Hz. The hipot rating is 2250 VDC line to ground for one minute.

Feature Summary

Provides two-stage attenuation for effective electromagnetic interference suppression
Designed for secure chassis mounting applications
Utilizes quick connect terminal style for straightforward circuit integration

Applications

General industrial equipment requiring EMI suppression
Medical devices needing filtered AC power entry
Commercial machinery utilizing standard AC power lines

Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that the 6VN1 part number aligns with the required 6A current rating and 250VAC voltage parameters for your design. Ensure compatibility with chassis mounting hole dimensions and quick connect terminal spacing. Check for RoHS compliance status in the latest manufacturer documentation prior to finalizing orders.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 6A circuits. It is suitable for environments where chassis mounting is preferred over panel mount options. Consider the leakage current limits if sensitive safety grounding is involved. Verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 6VN1 represents a standard solution for noise reduction in AC power inputs. It is distinct from unfiltered inlets or single-stage variants within the broader product catalog.
